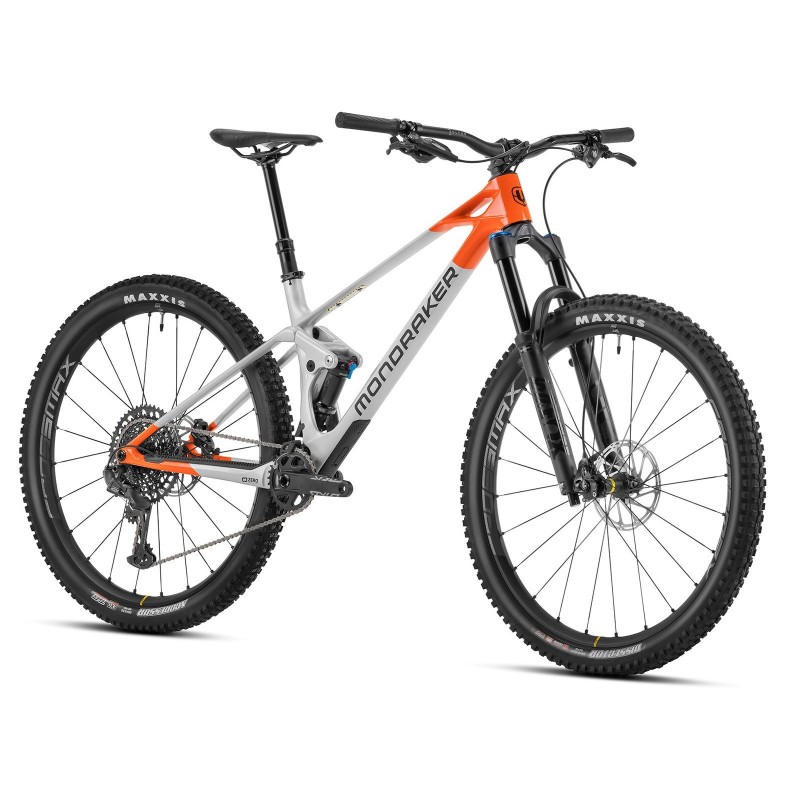

Raze Carbon R is the much anticipated, highly innovative trail bike from Mondraker combining the best of XC with the best of Enduro to create a bike without limits.
With 150mm travel at the front and 130mm at the rear, the new Mondraker Raze Carbon R is not a normal trail bike. The definition of a trail bike isn’t based on suspension travel, but rather on functionality.
In line with Mondraker philosophy mountain bikes are for fun, and to fulfill that objective they must be really, really good at going both up and down mountains. Raze is the new Trail model for those who want it all, and with guarantees. The Raze frame is manufactures from carbon fibre using Mondraker latest generation STEALTH AIR FULL CARBON technology, achieving a frame weight (not including the rear shock) of close to 2 kg. The brand have fully optimized their double-link ZERO SUSPENSION SYSTEM to achieve the best pedaling response and the most uncompromised suspension performance in a bike of these characteristics. Raze debuts a new lower link for optimal stiffness.
With Trail-specific kinematics and a FOX shock tuned specifically for this model, Mondraker have managed to strike the perfect compromise between pedaling efficiency and overall performance. The key to the new Raze is that it has the best traits of both XC and Enduro all rolled into one single model : The best of F-Podium and the best of Foxy Carbon as a new generation of trail bike: Agile, with a lightning fast pedal response combined with surprising sensitivity and shock performance as well as, until now, unheard of levels of lightness, extreme maneuverability and enviable poise. Your next bike? Most likely.
Frame features
Material : Stealth Air Carbon
Wheel size : 29"
Headtube: Specific for 40x52x7 bearings and internal cable routing
Bottom bracket type : BSA 73 mm
Rear axle size : Boost 12x148 mm
Rear brake mount : Postmount
Cable routing : Internal
Compatible with dropper seatpost with internal rounting
ISCG05 mount
Mudguard integrated for rear shock
Technology : - Forward Geometry - CSC Upper Link - HHG Internal cable routing - Enduro Max sealed cartridge bearings
MIND Telemetry system available by option
Sizes : - S - M - L - XL
Derailleur hanger : SRAM UDH
Colour : Silver / Orange
Warranty (Register your bike on Mondraker website) : - Front triangle : Lifetime - Rear triangle : 2 years
Components
Fork : Fox 36 29 Float GRIP EVOL Performance, 150mm
Rear shock : Fox Float DPS LV EVOL Performance, 205x57.5mm
Headset : Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem : ONOFF Sulfur FG 30mm 0º
Handlebar : ONOFF Sulfur 1.0 double butted 6061
Grips : ONOFF Desert, 1lock-on, 135mm
Seatpost : ONOFF Pija dropper internal, diameter 31.6mm - Travel size S : 95-125 mm - Travel size M : 120-150 mm - Travel size L : 140-170 mm - Travel size XL : 140-170 mm
Saddle : Fizik Antares R7
Brakes : - Front : Sram G2 R 180 mm - Rear : Sram G2 R 180 mm
Wheels : - Front : Mavic CrossMax XL S Tubeless Ready 29" Boost 15x110 mm - Rear : Mavic CrossMax XL S Tubeless Ready 29" Boost 12x148 mm
Tires : - Front : Maxxis Dissector Tubeless Ready Exo 3C Maxx Terra 29x2.40 WT - Rear : Maxxis Minion DHR II Tubeless Ready Exo 29x2.40 WT
Crankset : Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring,
