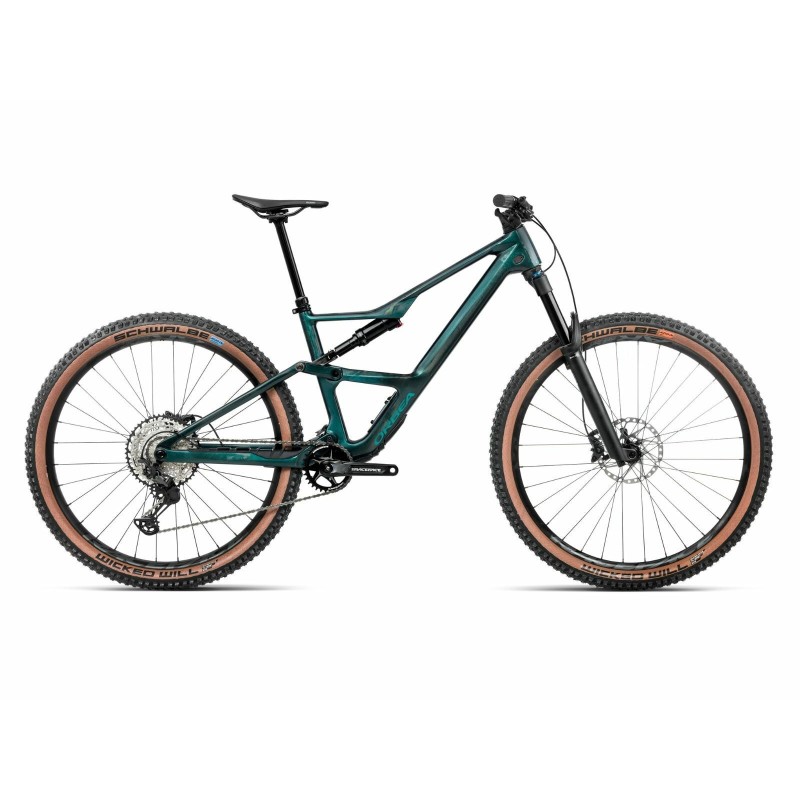

Orbea OCCAM SL M30 - Escape Green / Carbon View (Gloss)

Lightweight but packing a punch, Orbea Occam SL might be your perfect trail machine for big adventures and fun trails. Its balanced geometry and 140 mm of travel put you in the perfect position to bring more flow to your adventures while the anti-squat gives great pedalling efficiency and is one of the reasons that Occam SL climbs so well.

Remote lockout comes to trail bikes with Occam SL. Locking and unlocking the suspension quickly becomes second nature and once you have tried it you won't want to live without it.

Designed to work with Occam SL´s patented I-Line technology, the Squidlock 2 position remote give easy control of your shock and dropper post as well as integrating with the brake clamps to further simplify your handlebars.

Due to the uninterrupted, steep seat-tube all riders should be able to fully insert an astonishing 230mm dropper in their Occam. Drop your saddle right out of the way on the descents, giving more space to more your body and more control. Long travel droppers are the only way!

Occam SL is ready for a tough life and the replaceable Second Skin vinyl protection brings new styling options as well as keeping the paintwork looking like new for longer. The beauty of it is that if you get bored of the look, or want to refresh your bike, you can easily remove it and replace it with a different design. The Occam also uses custom co-moulded plastic protectors to shield the frame from impacts and remove chain noise. Cable noise is eliminated using internal cable guides, improved silicon plugs at the frame entry and exit points and clever conduits linking the front and rear triangle.

Occam SL is available in four sizes, S, M, L and XL, however Steep´n´Deep and one of the shortest seattubes around mean you can pick between sizes to get your preferred reach. Choose a larger size to maximise stability, or go with a smaller size for a more playful Occam.

Main features

• The OMR frame features high modulus, high-strength fibres, and advanced carbon manufacturing techniques that let Orbea use less carbon while maintaining strength.
• The carbon shock extender maximises rigidity and minimises weight.
• The offset frame brace allows us to remove material whilst tightly controlling stiffness and lowering weight. The fact that we think it looks cool is almost irrelevant.
• 140 mm of travel very versatile
• SIC System: fully sealed internal cable are quieter and more reliable
• LockR offer an easy access to the frame tool storage
• Both Internal or External cable routing
• Fully Sealed Cartridge Bearings protects from dirt and makes sure that everyting lasts longer and keeps working smoothly even when conditions are filthy
• Progressive suspension with Float DPS rear shock
• Shimano 12 speed drive train precise and reliable
• OC Dropper Post
• Lifetime warranty frame

Features

• FRAME : Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels
• SHOCK : Fox Float Performance Remote Push-lock Evol custom tune 210x50mm
• FORK : Fox 36 Float SL Performance 140, Grip, Remote Push-lock, QR15x110
• CRANKSET : Race Face Aeffect 32t
• HEADSET : Alloy 1-1/2", Black Oxidated Bearing
• HANDLEBAR : OC Mountain Control MC30 Carbon, Rise 20, Width 800
• GRIPS : OC Lock On
• STEM : OC Mountain Control MC11 Alu SL, 0º
• SHIFTERS : Shimano SLX M7100 I-Spec EV
• BRAKES : Shimano  M6100 Hydraulic Disc
• CASSETTE : Shimano CS-M7100 10-51t 12-Speed
• REAR DERAILLEUR : Shimano XT M8100 SGS Shadow Plus
• CHAIN : Shimano M6100
• WHEELS : Race Face AR 30c Tubeless Ready
• TYRES : Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown
• SEATPOST : OC Mountain Control MC22, 31.6mm, Dropper
• REMOTE : OC Squidlock MC20 Remote, Dropper, Suspension 2 Pos
• SADDLE : Fizik Terra Ridon X5 145mm
• STORAGE : Accesories container

Size infos (for help)

• S (29") - 150 to 170 cm
• M (29") - 160 to 180 cm
• L (29") - 170 to 190 cm
• XL (29") - 180 to 200 cm
