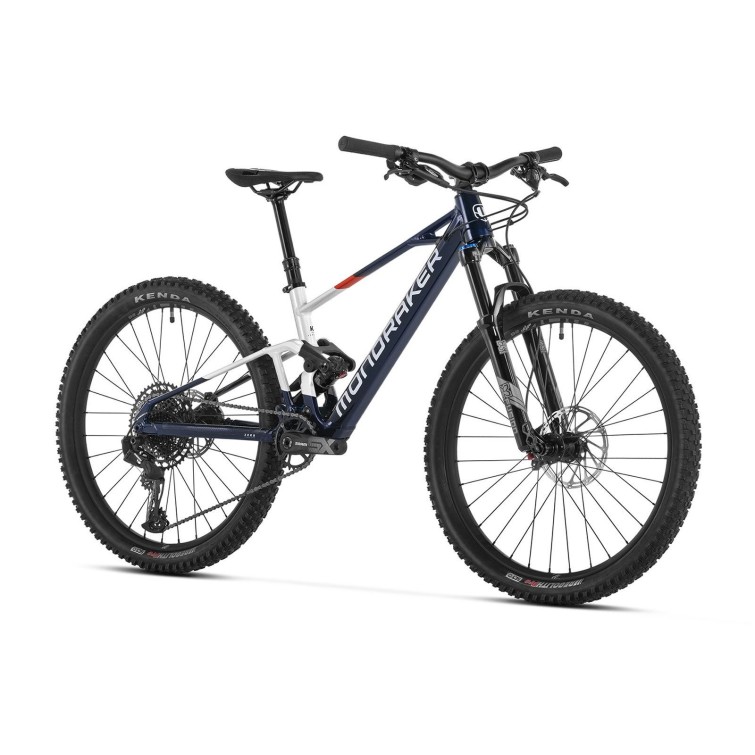

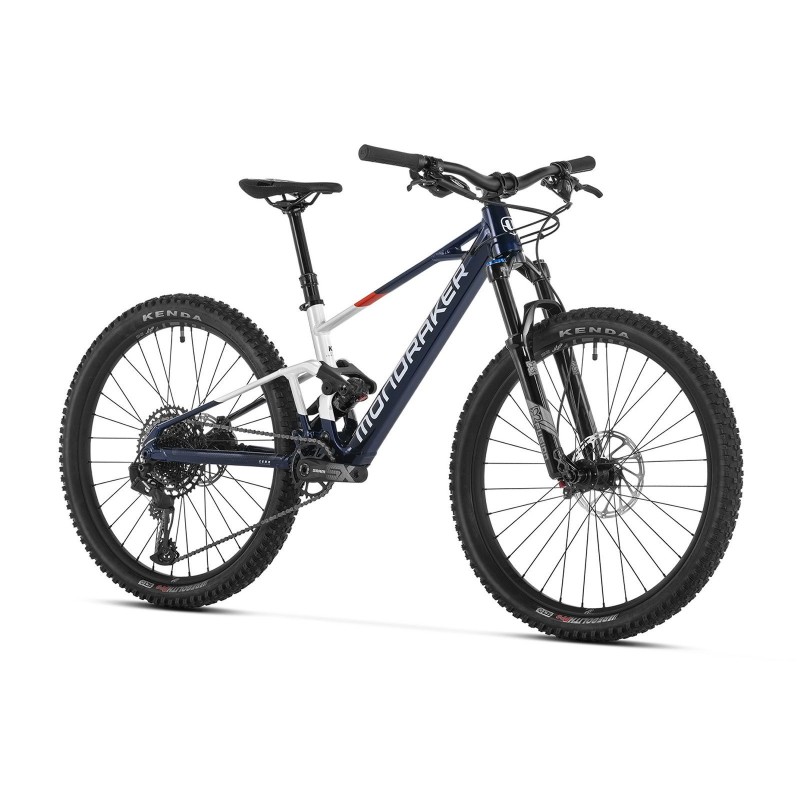

Mondraker F-Trick 26''

The all-new F-Trick full suspension range, has so many things in common with the high-end adult bikes that we’re hard pressed to call it a kids bike. Forward Geometry, the Updated Zero Suspension System, 120mm and 130mm travel, dropper posts, 12x148mm drop-outs, 30mm stems, 4 piston brakes and 2.4” tyres. It’s enough to leave you out of breath.

Picking up the baton from the old Factor range, the F-Trick comes in 24” and 26” flavours. As such the F-Trick 24” is perfect for kids from 8 to 11 years old (135-155cm) and the F-Trick 26” suits anyone from 10 to 14 years old (145-165cm).

At first sight it might be hard to tell if the F-Trick is a kids bike or a bike for adults. The design language is straight out of the NEAT or F-PODIUM handbook, with minimalistic tubes and straight lines that soften the aesthetic to give the bike a true Mondraker personality, only in small form format. The icing on top is the same new Forward Geometry as on the adult bikes but tweaked to suit kids’ needs, and details like 30mm stems to keep the steering sharp but stable.

One of the raddest features of the new F-Trick range is that both the 24” and 26” versions come with the all new Updated Zero Suspension System. The F-Trick is only the third range to feature this new take on our Zero system, following hard on the heels of the recently launched Neat and F-Podium models. It’s a gift that keeps giving when you consider it gives 120mm of travel on the smaller-wheeled version (up from 100mm) and 130mm on the 26” model (compared to 120mm on the Factor it replaces) as well as the many other advantages well detail later. The forks have also been upgraded, from 120mm on the 24” bike (100mm on the Factor 24”) and 140mm on the 26” bike (up from 120mm on the Factor 26”).

Frame features

• Material : Alloy 6061 Stealth Evo
• Wheel size : 26"
• Headtube type : Tapered
• Bottom bracket type : BSA 73 mm
• Rear axle size : Boost 12x148 mm
• Cable routing : Internal
• Technology :
    - Forward Geometry XC
• Sizes : 26"
• Derailleur hanger : UDH
• Colour : Blue / White / Red

• Warranty : Lifetime (Register your bike on Mondraker website)

Components

• Fork : X-Fusion Velvet RL 26, 140mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
• Rear shock : X-Fusion 02PRO R, 165x45mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings
• Headset : Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
• Stem : Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
• Handlebar :  MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
• Grips : Onoff Twin, 1lock-on
• Seatpost : Onoff Pija dropper internal, diameter 31.6, 405x95-125mm
• Saddle : SDG Fly JR
• Brakes :
    - Front : Sram G2 R 180 mm
    - Rear : Sram G2 R 180 mm
• Wheels :
    - Front : MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes 15x100 mm
    - Rear : MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes 12x142 mm
• Tires :
    - Front : Kenda Regolith 26x2.4 120TPI, folding TLR
    - Rear : Kenda Regolith 26x2.4 120TPI, folding TLR
• Crankset : Sram SX Eagle, DUB axle, Direct mount chain ring, 155mm
• Bottom bracket : BSA 73 mm
• Chain : Sram SX Eagle, 12s, Powerlock
• Rear derailleur : Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
• Shifter : Sram Trigger SX Eagle, 12s, X-Actuation 1:1
• Cassette : Sram PG-1230, 11-50T, 12s
• Pedals : SDG Slater JR

Mondraker weight : 13.9 kg
