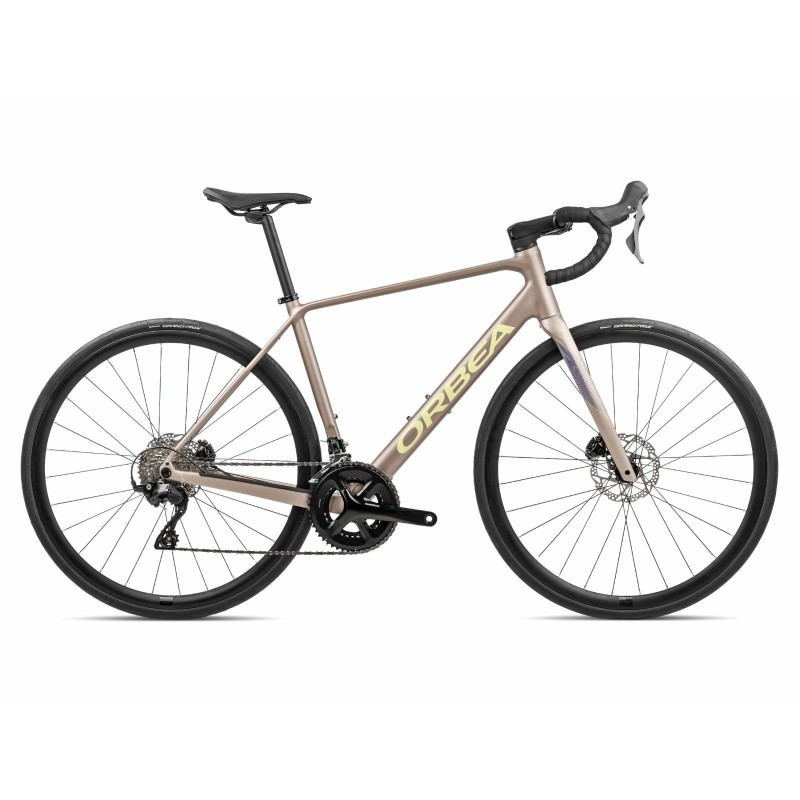

The Orbea Avant H30 road bike reinvents road cycling access by combining the comfort of an endurance geometry with a high-end finish. Designed around a triple-butted hydroformed aluminium frame featuring smoothed welds simulating the look of a carbon frame (Carbon Look), this model integrates fully internal cable routing (ICR) for a clean, modern aesthetic.
Equipped with a 100% OME carbon fork that absorbs road vibrations and the benchmark Shimano 105 R7100 2x12-speed drivetrain with hydraulic disc brakes, the Avant H30 lets you confidently tackle long distances and climbs, thanks in particular to its generous tyre clearance allowing tyres up to 35C (32C with fenders).
Orbea Avant H30 highlights
ADVANCED ALUMINIUM FRAME: Triple-butted hydroformed tubes with smoothed welds, combining lightness, lateral stiffness, and vertical compliance.
FULL CARBON OME FORK: Optimal road vibration filtration without compromising steering precision or braking stiffness.
BALANCED ENDURANCE GEOMETRY: Lengthened top tube and steep seat angle for an optimal climbing position, combined with a stable wheelbase for descents.
SHIMANO 105 2x12s DRIVETRAIN: Ultra-precise shifting and a smooth 11-36t range, ideal for tackling any mountain pass with ease.
PREMIUM HYDRAULIC BRAKING: Shimano R7170 hydraulic discs offering exceptional stopping power and modulation in all conditions.
INCLUDED OC TB03PP TOOLBOX: Integrated storage box under the frame to carry an inner tube, tyre levers, and CO2 cartridges without a saddle bag.
Technical specifications
Frame: Orbea Avant Hydro disc, triple-butted hydroformed aluminium, 1.5" ICR tapered head tube, threaded 68 mm BSC English bottom bracket, 12x142 mm M12x2 P1 thru axle, ICR internal cable routing, 27.2 mm seatpost, MMS mount system
Fork: Orbea Avant Hydro 2025, full carbon, 1-1/8" - 1.5" tapered steerer, 12x100 mm M12x2 P1 thru axle
Headset: FSA 1-1/2" Integrated Aluminium Cup
Shifters: Shimano R7120 (2x12-speed)
Rear derailleur: Shimano 105 R7100
Front derailleur: Shimano 105 R7100
Crankset: Shimano RS520, double chainring 34x50t
Cassette: Shimano HG710, 12-speed, 11-36t range
Chain: Shimano M6100
Brakes: Shimano R7170, hydraulic disc brakes
Handlebar: OC Road Performance RP31-R (Rise 15 mm, Reach 70 mm, Drop 125 mm)
Thru axles: Orbea Thru Axle (Front: 12x100 mm M12x2 P1 Solid / Rear: 12x142 mm M12x2 P1 Solid)
Storage space: Integrated OC Toolbox TB03PP
Fender compatibility: Yes (mounting points provided for standard fenders, max 32C tyre clearance with fenders)
Sizing info (indicative dimensions)
Size 47: 155-160 cm
Size 49: 160-166 cm
Size 51: 167-172 cm
Size 53: 173-179 cm
Size 55: 180-185 cm
Size 57: 186-191 cm
Size 60: 192-207 cm
PureBike advice
Tyre optimisation: Stocked with 700x30c tyres, the Avant H30 frame accepts tyres up to 700x35c to turn your road bike into an ultra-comfortable all-rounder for rough roads or greenways.
Tool storage: Make the most of the OC Toolbox TB03PP storage box attached to the lower frame to lower the centre of gravity while storing your repair kit.
Drivetrain maintenance: Clean the 12-speed chain regularly and apply a weather-appropriate lubricant to maintain the smooth and quiet operation of the Shimano 105 groupset.
