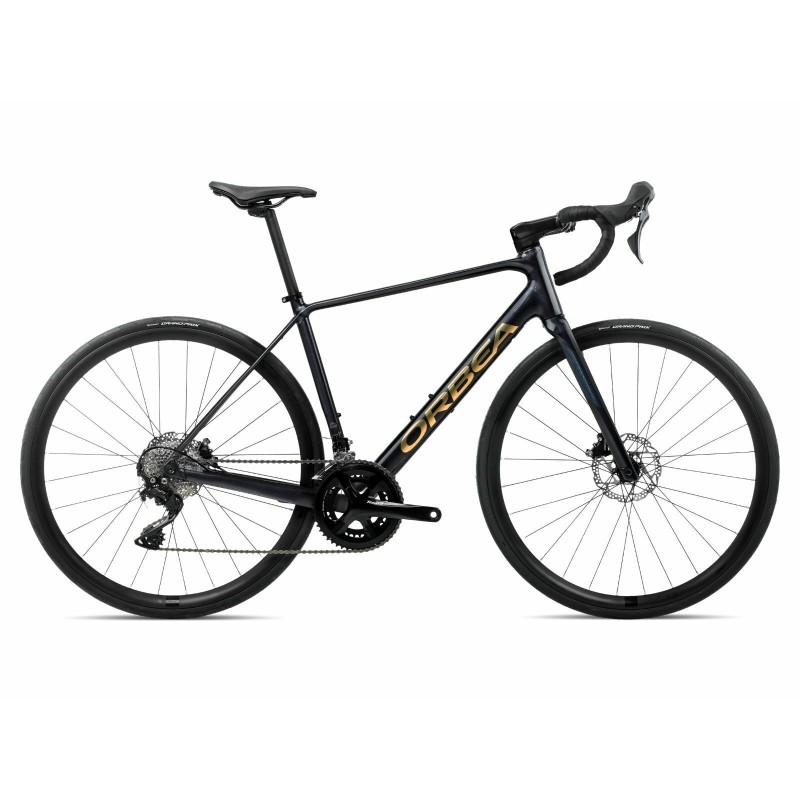

Orbea Avant H40 Road Bike Diamond Black-Titan Gold (Gloss)

The Orbea Avant H40 road bike reinvents road cycling access by combining the comfort of an endurance geometry with a high-end finish. Designed around a triple-butted hydroformed aluminium frame featuring smoothed welds simulating the look of a carbon frame (Carbon Look), this model integrates fully internal cable routing (ICR) for a clean, modern aesthetic.

Equipped with a 100% OME carbon fork that absorbs road vibrations and the reliable Shimano Tiagra R4000 2x11-speed drivetrain with hydraulic disc brakes, the Avant H40 lets you confidently tackle long distances and climbs, thanks in particular to its generous tyre clearance allowing tyres up to 35C (32C with fenders).

Orbea Avant H40 highlights

• ADVANCED ALUMINIUM FRAME: Triple-butted hydroformed tubes with smoothed welds, combining lightness, lateral stiffness, and vertical compliance.
• FULL CARBON OME FORK: Optimal road vibration filtration without compromising steering precision or braking stiffness.
• BALANCED ENDURANCE GEOMETRY: Lengthened top tube and steep seat angle for an optimal climbing position, combined with a stable wheelbase for descents.
• SHIMANO TIAGRA 2x11s DRIVETRAIN: Smooth shifting and a versatile 11-36t range, ideal for conquering mountain passes effortlessly.
• POWERFUL HYDRAULIC BRAKING: Shimano RS405 hydraulic discs for precise speed control in all weather conditions.
• INCLUDED OC TB03PP TOOLBOX: Integrated storage box under the frame to carry an inner tube, tyre levers, and CO2 cartridges without a saddle bag.

Technical specifications

• Frame: Orbea Avant Hydro disc, triple-butted hydroformed aluminium, 1.5" ICR tapered head tube, threaded 68 mm BSC English bottom bracket, 12x142 mm M12x2 P1 thru axle, ICR internal cable routing, 27.2 mm seatpost, MMS mount system
• Fork: Orbea Avant Hydro 2025, full carbon, 1-1/8" - 1.5" tapered steerer, 12x100 mm M12x2 P1 thru axle
• Headset: FSA 1-1/2" Integrated Aluminium Cup
• Shifters: Shimano Tiagra R4020 (2x11-speed)
• Rear derailleur: Shimano Tiagra R4000 Shadow
• Front derailleur: Shimano Tiagra R4000
• Crankset: Shimano Tiagra R4000, double chainring 34x50t
• Cassette: Shimano CS-RS400, 11-speed, 11-36t range
• Chain: Shimano LG500 Linkglide
• Brakes: Shimano RS405, hydraulic disc brakes
• Handlebar: OC Road Performance RP31-R (Rise 15 mm, Reach 70 mm, Drop 125 mm)
• Stem: OC Road Performance RP23, -5º angle, integrated cable routing
• Bar tape: Orbea Eva anti-slip
• Saddle: SD 0.1 (width 145 mm)
• Seatpost: SP 0.6, aluminium, 27.2 mm diameter, 20 mm setback
• Wheels: Aluminium, Tubeless Ready, 700c, 19c internal width, 28H
• Tyres: Continental Grand Prix Foldable, 700x30c
• Thru axles: Orbea Thru Axle (Front: 12x100 mm M12x2 P1 Solid / Rear: 12x142 mm M12x2 P1 Solid)
• Storage space: Integrated OC Toolbox TB03PP
• Fender compatibility: Yes (mounting points provided for standard fenders, max 32C tyre clearance with fenders)

Sizing info (indicative dimensions)

• Size 47: 155-160 cm
• Size 49: 160-166 cm
• Size 51: 167-172 cm
• Size 53: 173-179 cm
• Size 55: 180-185 cm
• Size 57: 186-191 cm
• Size 60: 192-207 cm

PureBike advice

• Tyre optimisation: Stocked with 700x30c tyres, the Avant H40 frame accepts tyres up to 700x35c to turn your road bike into an ultra-comfortable all-rounder for rough roads or greenways.
• Tool storage: Make the most of the OC Toolbox TB03PP storage box attached to the lower frame to lower the centre of gravity while storing your repair kit.
• Drivetrain maintenance: Clean the chain regularly and apply a weather-appropriate lubricant to maintain the smooth shifting of the 11-speed Shimano Tiagra groupset.
