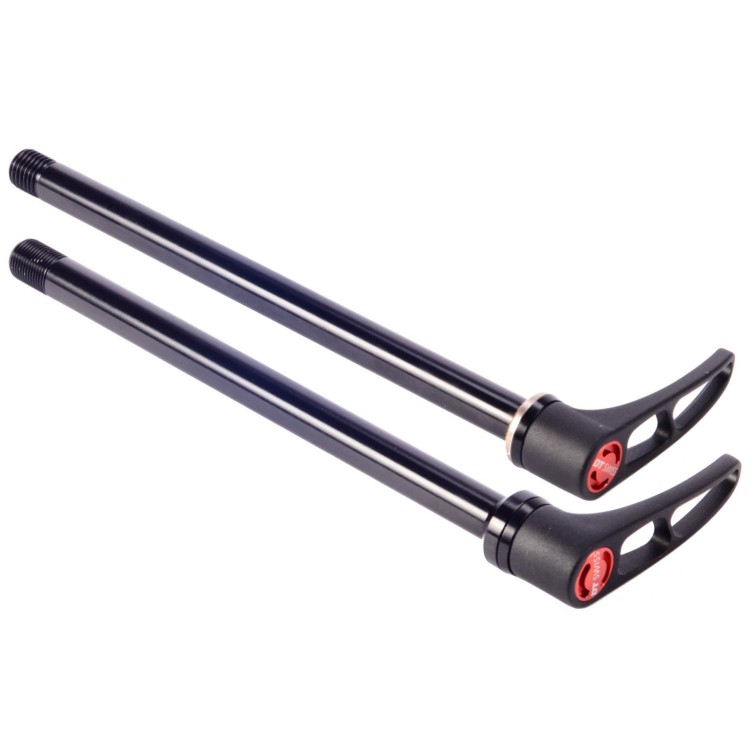

DT Swiss RWS 12 mm rear axle

DT Swiss RWS 12 mm rear axle is available in X-12 (conical interface) or Thru-Axle (flat interface) and for 12x142 mm or 12x148 mm boost frame rear wheel standard. The lever can rotate to 360° to be positionned exactly as you need

Features of the version 12x148 mm - 173.7 mm (HWQASM00S2155S)

• Material : Aluminium
• Type : Thru axle (flat interface)
• Frame compatibility : 12x148 mm (boost)
• Length : 173.7 mm
• Thread length : 15 mm
• Thread size : M12x1
• Weight : 66 gr

Features of the version 12x148 mm - 168.5 mm (HWQASM00S9566S)

• Material : Aluminium
• Type : X-12 (conical interface)
• Frame compatibility : 12x148 mm (boost)
• Length : 168.5 mm
• Thread length : 15 mm
• Thread size : M12x1
• Weight : 66 gr

Features of the version 12x142 mm - 167.7 mm (HWQASM00S2961S)

• Material : Aluminium
• Type : Thru axle (flat interface)
• Frame compatibility : 12x142 mm
• Length : 167.7 mm
• Thread length : 15 mm
• Thread size : M12x1
• Weight : 64 gr

Features of the version 12x142 mm - 162.5 mm (HWQASM00S2955S)

• Material : Aluminium
• Type : X-12 (conical interface)
• Frame compatibility : 12x142 mm
• Length : 162.5 mm
• Thread length: 15 mm
• Thread size : M12x1
• Weight : 65 gr

Features of the version 12x148 mm - 178 mm (HWQASM00S6778S)

• Material : Aluminium
• Type : Thru axle (flat interface)
• Frame compatibility : 12x148 mm (boost)
• Length : 178 mm
• Thread length : 13 mm
• Thread size : M12x1.5
• Weight : 66 gr
