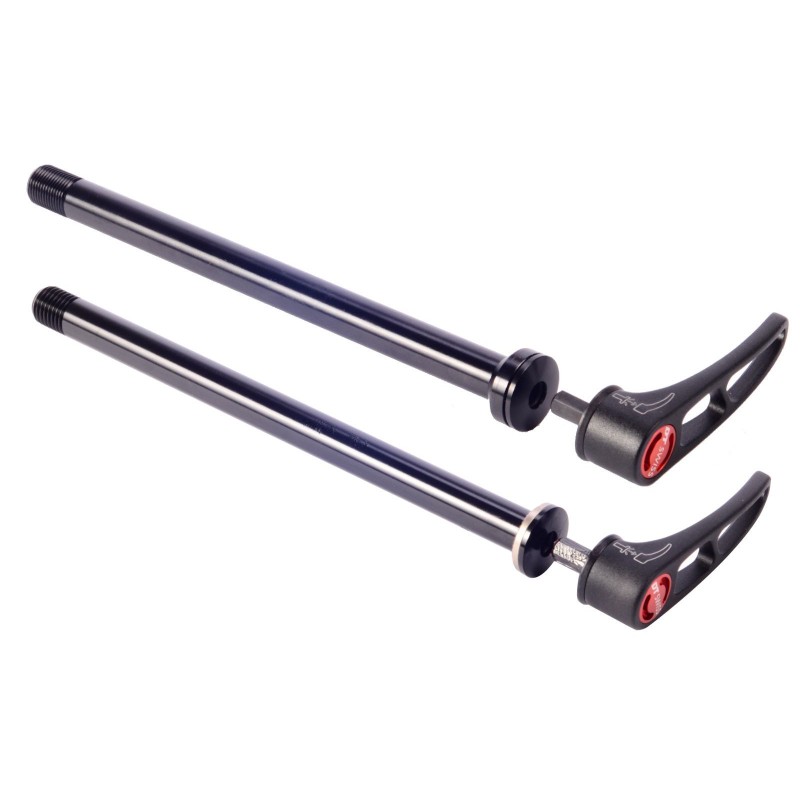

DT Swiss RWS Plug In 12 mm rear axle

DT Swiss RWS Plug In 12 mm rear axle is available in X-12 (conical interface) or Thru-Axle (flat interface) and for 12x142 mm or 12x148 mm boost frame rear wheel standard. The plug in lever is removable and can rotate to 360° to be positionned exactly as you need

Features of the version 12x142 mm - 162.5 mm (HWQASM00S0234S)

• Material : Aluminium
• Type : X-12 (conical interface)
• Frame compatibility : 12x142 mm
• Length : 162.5 mm
• Thread length : 15 mm
• Thread size : M12x1
• Weight : 69 gr

Features of the version 12x142 mm - 167.7 mm (HWQASM00S9909S)

• Material : Aluminium
• Type : Thru axle (flat interface)
• Frame compatibility : 12x142 mm
• Length : 167.7 mm
• Thread length : 15 mm
• Thread size : M12x1
• Weight : 68 gr

Features of the version 12x142 mm - 171 mm (HWQASM00S2034S)

• Material : Aluminium
• Type : Thru axle (flat interface)
• Frame compatibility : 12x142 mm
• Length : 171 mm
• Thread length : 13 mm
• Thread size : M12x1.5
• Weight : 68 gr

Features of the version 12x148 mm - 168.5 mm (HWQASM00S9923S)

• Material : Aluminium
• Type : X-12 (conical interface)
• Frame compatibility : 12x148 mm (boost)
• Length : 168.5 mm
• Thread length: 15 mm
• Thread size : M12x1
• Weight : 70 gr

Features of the version 12x148 mm - 177 mm (HWQASM00S2035S)

• Material : Aluminium
• Type : Thru axle (flat interface)
• Frame compatibility : 12x148 mm (boost)
• Length : 177 mm
• Thread length : 13 mm
• Thread size : M12x1.5
• Weight : 70 gr
