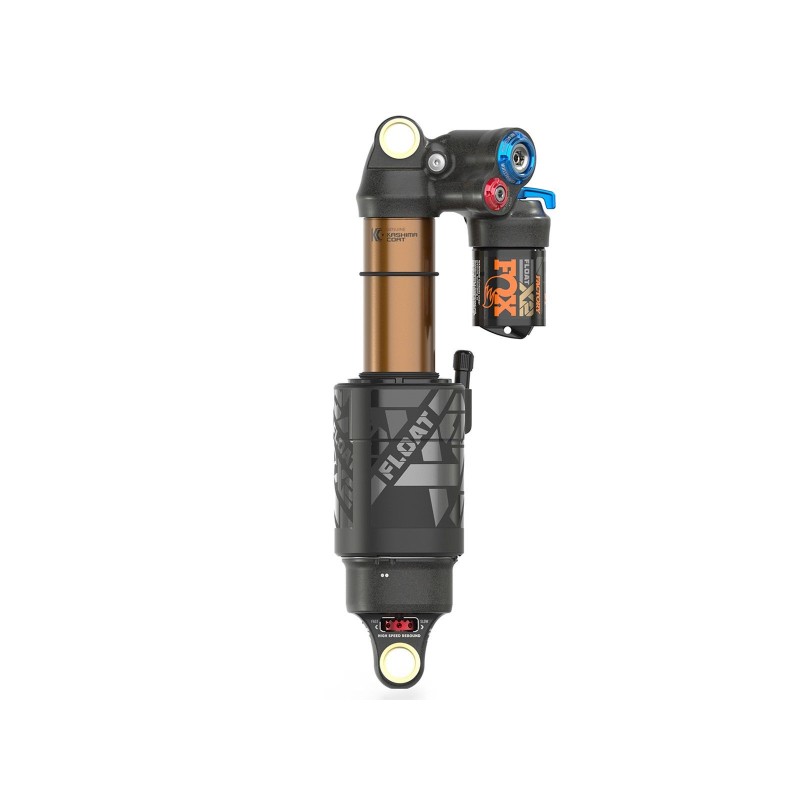

Fox Racing Shox Float X2 Factory 2 position lever metric rear shock

For 2024, Fox Float X2 Factory 2 position lever metric rear shock includes eyelet and body improvments and a new seal kit more durable and efficient. Redesigned from the ground up and aimed at the all-mountain and gravity crowds, the Float X2 is Fox's big-hit air sprung rear shock. It offers separately adjustable high/low speed compression and high/low speed rebound. Extra Volume (EVOL) air sleeves reduce the force needed to initiate travel, providing improved small bump compliance.

New

• NEW base piston design and compression tunes for increased control and reduced harshness
• NEW super durable low friction seal package
• NEW more robust eyelet on trunnion models
• NEW 7000 series shock body
• NEW ultra-low friction, highly durable hard chrome damper shaft finish
• MCU bottom-out bumper for end strock progressivity
• Matching 8-click HSC and HSR adjustment on GRIP2 forks and X2 shocks
• Unrivaled  high-speed rebound tunability via addition of VVC (Variable Valve Control)
• Increased control and decreased harshness via linear damping
• Independent firm mode circuit – firmer lockout than previous FLOAT X2
• Finned inner body for improved structural rigidity and reduced hysteresis

Features

• Float X2 Factory Rear Shock
• Kashima coat
• High-speed compression - 8 clicks
• Low-speed compression - 16 clicks
• 2 position lever (open/firm) that retains high and low speed compression adjustment
• High-speed rebound (w/VVC) - 8 clicks
• Low-speed rebound - 16 clicks
• High oil flow improves damping control and consistency
• EVOL air sleeve improves responsiveness and sensitivity
• Genuine Kashima Coat reduces friction
• Metric Sizes :
    - 210x50 mm
    - 210x52.5 mm
    - 210x55 mm
    - 230x57.5 mm
    - 230x60 mm
    - 230x62.5 mm
    - 230x65 mm
• 2 years warranty
