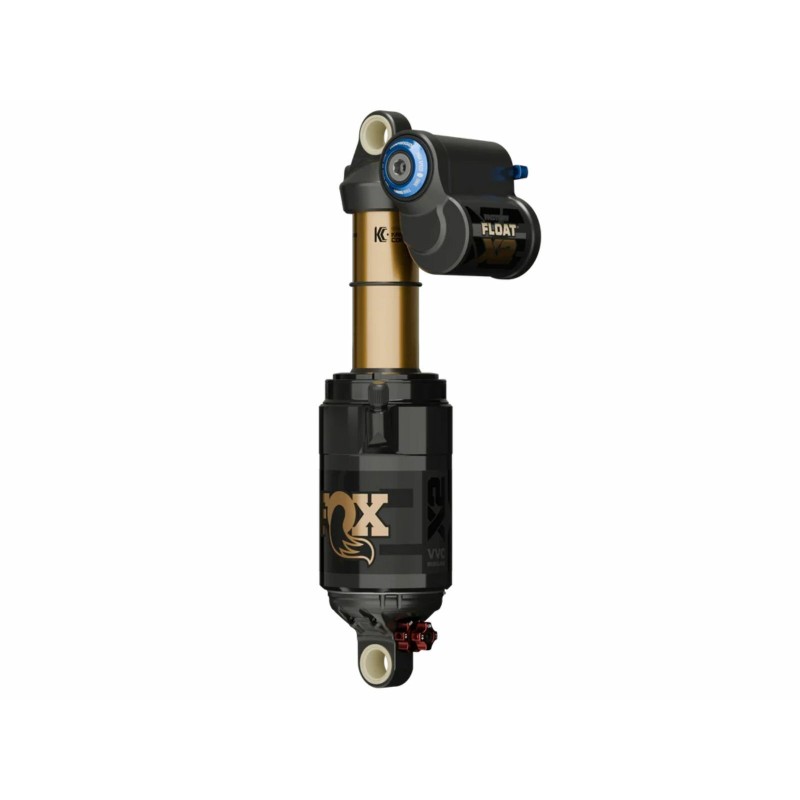

Fox Racing Shox Float X2 Factory 2 Pos-Adj Metric rear shock

FOX Float X2 Factory Shock: The Absolute Reference for Gravity

The FOX Float X2 rear shock redefines the standards for downhill performance. Designed for the most demanding riders, this air shock offers an ultra-smooth ground feel, comparable to a coil spring, while allowing for unmatched adjustment precision. Whether you're on a World Cup DH line or a technical Enduro stage, the Float X2 provides constant control and traction.

A Design Fully Coated in Technology.

This new generation benefits from a revised architecture for increased durability and minimal friction:

• Genuine Kashima Coating: The iconic gold finish isn't just for looks; it offers a drastic reduction in friction for incredible small-bump sensitivity and extreme wear resistance.
• New Monotube Chassis: A shift to a more robust and simpler design that improves internal pressure management and eliminates cavitation noise.
• Chromed Damper Shaft: A new 1/2-inch diameter shaft with an ultra-smooth treatment for extended seal longevity.

High-Precision Adjustments: 4-Way Control.

The Float X2 is the most adjustable shock in the FOX lineup. Thanks to its four external dials, you can adapt your suspension to any terrain:

• High & Low Speed Compression (HSC/LSC): Manage support on big hits and pedaling stability.
• High & Low Speed Rebound (HSR/LSR): Optimize how the shock recovers after an impact. The VVC (Variable Valve Control) system allows for precise high-speed rebound adjustment, simulating an internal valve shim change.
• 2-Position Lever (Open/Firm): An independent lever to firm up the suspension during transitions and climbs, without losing your compression settings.

Why Choose the Float X2

• "Coil-like" Sensitivity: The high-volume EVOL air sleeve provides exceptional linearity at the beginning of the stroke.
• Progressive End-Stroke: The new MCU bumper prevents harsh bottom-outs on big jumps.
• Customization: Fine-tune air progressivity using 1cc volume spacers.

Dominate every descent with the Fox Float X2, the shock that transforms rock gardens into a magic carpet ride.

Specifications

• Series: Float X2 Factory (Kashima)
• Spring Type: Air
• Technology: VVC (Variable Valve Control) and MCU
• Max Pressure: 300 PSI
• Adjustments
  - Low-speed compression (16 clicks)
  - High-speed compression (8 clicks)
  - Low-speed rebound (16 clicks)
  - High-speed rebound (8 clicks)
• Mount : Standard
• Intended Use: Enduro, DH, Freeride
• Weight: Approx. 710 g (depending on dimensions)

Expert Tip: Don't forget to check the dimensions (Eye-to-Eye x Stroke) as well as the mounting standard (Standard or Trunnion) compatible with your frame.
