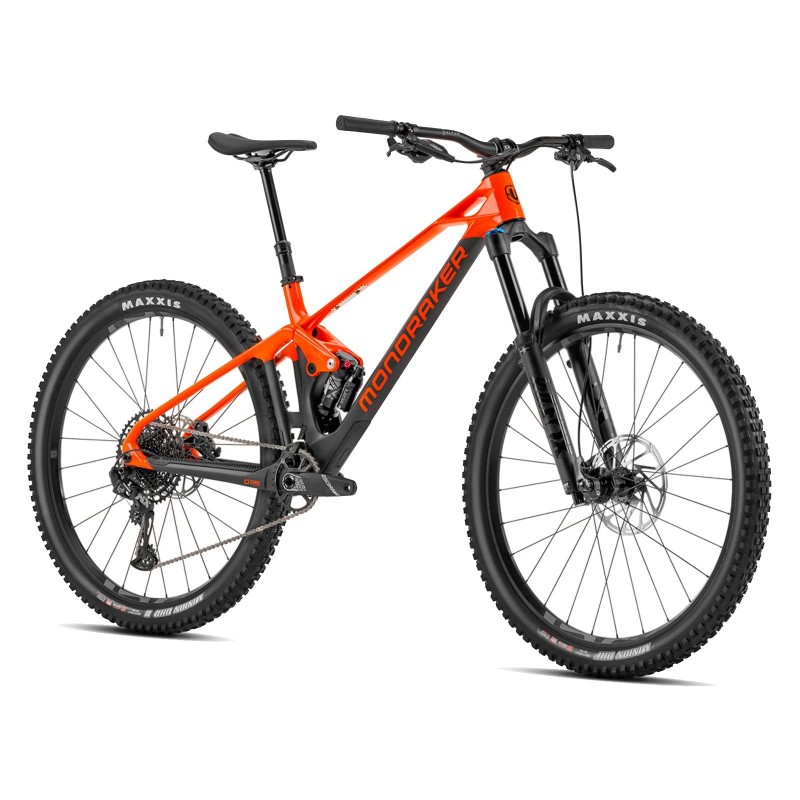

Mondraker Foxy Carbon R 29" Orange

Foxy is and always has been “THE BIKE” par excellence at Mondraker. The Mondraker Foxy Carbon R 29"  offer 160 mm front and 150 mm rear travel and gets a new adjustable lower and slacker geometry and a reinforced rear end. Thanks to more than 21 years of experience manufacturing mountain bikes and to Mondraker precision in manufacture and development, we can say that the new Foxy Carbon will continue to be a reference point in Mondraker’s catalog while standing out as their alpha enduro bike on its own merits. Innovative, more capable, more efficient suspension action, lighter and more versatile thanks to its improved and adjustable geometry. In short, the new Foxy Carbon is the best iteration of the model yet.

The R version feature a Sram Eagle 12 speed system, Fox suspensions, and Sram G2 disc brakes : all the best to help you to have fun on the bike only thinking on the pleasure of riding a mountain bike

Frame features

• Material : Stealth Air Carbon
• Wheel size : 29"
• Headtube: Specific for 40x52x7 bearings and internal cable routing
• Bottom bracket type : BSA 73 mm
• Rear axle size : Boost 12x148 mm
• Rear brake mount : Postmount
• Cable routing : Internal
• Compatible with dropper seatpost with internal rounting
• ISCG05 mount
• Mudguard integrated for rear shock
• Technology :
    - Forward Geometry
    - CSC Upper Link
    - HHG Internal cable routing
    - Enduro Max sealed cartridge bearings
• Sizes :
    - S
    - M
    - L
    - XL
• Derailleur hanger : SRAM UDH

• Geometry kit included
• Colour : Orange

• Warranty (Register your bike on Mondraker website) :
    - Front triangle : Lifetime
    - Rear triangle : 2 years

Components

• Fork : Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
• Rear shock : Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
• Headset : Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
• Stem : ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
• Handlebar : ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
• Grips : ONOFF Desert, 1lock-on, 135mm
• Seatpost : OnOff Pija 31,6 mm
    - Travel size S : 95-125 mm x 405 mm
    - Travel size M : 120-150 mm x 458 mm
    - Travel size L and XL : 140-170 mm x 498 mm
• Saddle : SDG BEL-AIR 3.0, LPU foam, steel rails
• Brakes :
    - Front : Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
    - Rear : Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
• Wheels :
    - Front : e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes - Boost 15x110 mm
    - Rear : e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes - Boost 12x148 mm
• Tires :
    - Front : Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
    - Rear : Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
• Crankset : Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
• Bottom bracket : Sram DUB BSA, sealed bearings, 73mm
• Chain : Sram NX Eagle, 12s, Powerlock
• Rear derailleur : Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
• Shifter : Sram Trigger NX Eagle, 12s, X-Actuation 1:1
• Cassette : Sram XG-1230, 11-50T, 12s
• Sold WITHOUT pedals

Mondraker weight : 14.9kg
