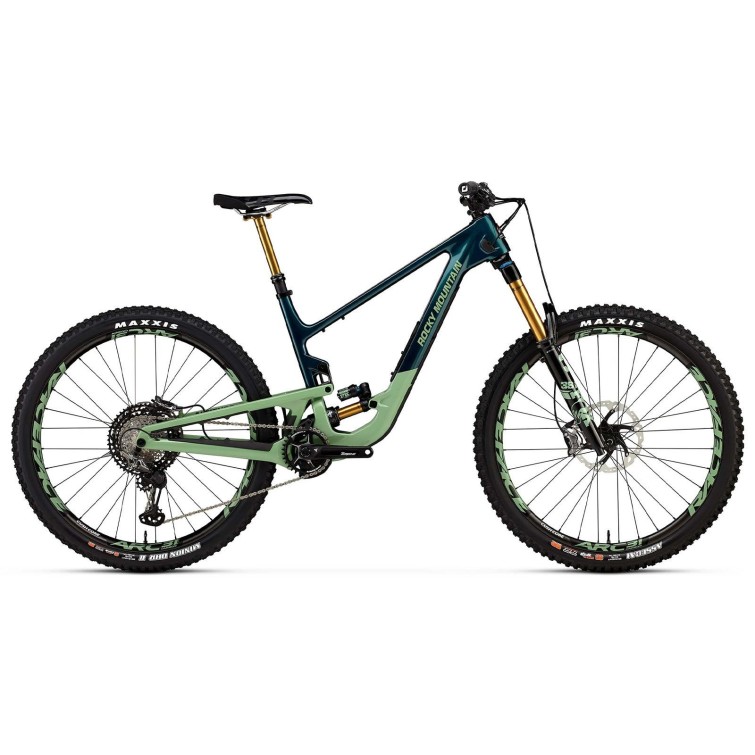

Rocky Mountain Altitude Carbon 90 Rally Edition - Green

Completely reimagined, from the ground up. The all-new design of the Rocky Mountain Altitude makes the bike even faster than before. With increased stiffness and a lower centre of gravity, overall ride performance is leveled up. Altitude eats up tough terrain. Its finely tuned rate curve and concentrated suspension mass let it handle bumps effectively, keeping the rear wheel glued to the ground under power and the linear rate curve provides a supportive and predictable feel with minimal unwanted movement or harshness. Mid to large-sized impacts are absorbed effectively without compromising speed or control.

The suspension system of the Altitude features LC2R technology (for « Low Centre Counter Rotating) delivers ride characteristics that balance kinematic variables to achieve the legendary Rocky Mountain ride feel riders have come to love.. LC2R was first introduced on the 2006 Slayer, and was found on later versions of the Slayer SXC and Slayer SS. The design was then adapted to the popular 2008 Flatline, and then the Flatline WC models.

Altitude offer 160 mm rear and 170 mm front travel with 63.5° head angle and 77.5° seat tube angle

2 Ajustable wheel size options .  Alloy and Carbon Frames in size MD, LG and XL are compatible with MX setup using a flip chip

3 Adjustable reach headset positions. Fine tune your ride with center, +/- 5mm offset options. Available on alloy and carbon models

4 Additional geometry settings : RIDE-4 allows four geometry configurations to suit riders styles and preferences.

Penalty Box, is a compartment that allow you to bring tools, bars and tubes . The Penalty box cover features and integrated Tile/Airtag compartment

Chainstay, Seatstay and Downtube rubber protections will protect your frame when riding or shuttling

This version Carbon 90 Rally Edition of the Rocky Mountain Altitude includes Fox Factory Kashima Suspensions,  Shimano XTR 4 pistons disc brakes,  Shimano XTR 12 vitesses transmission, Fox Transfer Factory Dropper Post, and Race Face ARC Carbon 31 wheelset

Features

• Frame : SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | BSA Bottom Bracket | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry |160mm Travel. SMOOTHWALL™ Carbon Rear Triangle
• Fork : Fox 38 Float EVOL GRIP2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset
• Front Travel : 170 mm
• Rear Shock : Fox Float X2 Factory | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ
• Rear travel : 160 mm
• Headset : FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
• Stem : Race Face Turbine R | 0° Rise | All Sizes = 40mm
• Handlebar : Race Face Next R | 780mm Width | 35mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp
• Grips : ODI Elite Pro Lock On
• Brakes : Shimano XTR Trail 4 Piston | IceTec Metal Pads
• Shifter : Shimano XTR
• Rear derailleur : Shimano XTR
• Crankset : Race Face Turbine Cinch | 32T | 30mm Spindle | SM = 165mm | MD - XL = 170mm
• Bottom Bracket : Race Face BSA 73 30mm
• Cassette : Shimano XTR 12s 10-51T
• Chain : Shimano XTR 12s
• Front hub : DT Swiss 350 Boost 15mm
• Reaer hub : DT Swiss 350 Boost 148mm | 36T Star-Ratchet
• Spokes : DT Swiss Competition 2.0/1.8/2.0
• Rims : Race Face ARC Carbon 31 | 32H / Tubeless Ready - Tape / Valves Incl
• Front tire : Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready
• Rear tire : Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready
• Protections : Cushcore Trail Tire Inserts | Lightweight | Tire & Rim Protection
• Seatpost : Fox Transfer Factory Series 30.9mm | SM = 150mm | MD = 175mm | LG - XL = 200mm
• Saddle : WTB Volt Race 142

Weight : 15.43 kg

Size Guide :

• SM : 152.5 à 167 cm
• MD : 162.5 à 177.5 cm
• LG : 172.5 à 188 cm
• XL : 183 à 198 cm
