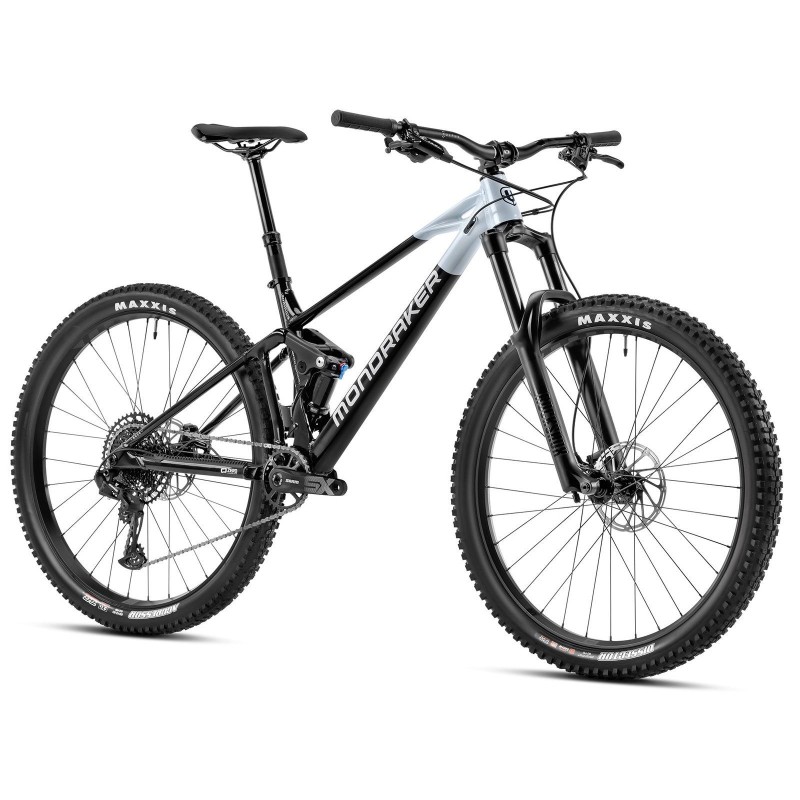

Mondraker Raze 29"

With 150mm travel at the front and 130mm at the rear, the new Mondraker Raze Aluminium is not a normal trail bike. The definition of a trail bike isn’t based on suspension travel, but rather on functionality.

Perfect for riders who want a bike that offers the whole package at a reasonable price. The RAZE is the trail bike to offer you the most amazing performance in its category thanks to Mondraker’s exclusive technologies: ALLOY STEALTH EVO, FORWARD GEOMETRY and ZERO SUSPENSION SYSTEM, and all without breaking the bank. Along with the other models in the range, whether carbon or aluminium, the RAZE builds on that same philosophy of enjoying both the ups and the downs thanks to its abundant capabilities at both activities. With 150mm of travel up front and 130mm at the rear, you'll be amazed at how versatile and fun it is. It is truly a bike for everything. The definitive quiver killer.

Frame features

• Material : Alloy Stealth EVO
• Wheel size : 29"
• Bottom bracket type : BSA 73 mm
• Rear axle size : Boost 12x148 mm
• Rear brake mount : Postmount
• Cable routing : Internal
• Compatible with dropper seatpost with internal rounting
• ISCG05 mount
• Technology :
    - Forward Geometry
    - CSC Upper Link
    - HHG Internal cable routing
    - Enduro Max sealed cartridge bearings
• Sizes :
    - S
    - M
    - L
    - XL
• Derailleur hanger : SRAM UDH

• Colour : Black / White
• Warranty (Register your bike on Mondraker website) :
    - Front triangle : Lifetime
    - Rear triangle : 2 years

Components

• Fork : Rock Shox 35 Gold 29 RL , 150mm
• Rear shock : Fox Float DPS LV EVOL Performance, 205x57,5mm
• Headset : OnOff Saturn Tapered
• Stem : ONOFF Sulfur FG 30mm 0º
• Handlebar : ONOFF Sulfur 1.0 double butted 6061
• Grips : ONOFF Twin, 1lock-on, 135mm
• Seatpost : ONOFF Pija dropper internal, diameter 31.6mm
    - Travel size S : 95-125 mm
    - Travel size M : 120-150 mm
    - Travel size L : 140-170 mm
    - Travel size XL : 140-170 mm
• Saddle : MDK Series
• Brakes :
    - Front : Sram Level T 180 mm
    - Rear : Sram Level T 180 mm
• Wheels :
    - Front : MDK-EP1 29" Boost 15x110 mm
    - Rear : MDK-EP1 29" Boost 12x148 mm
• Tires :
    - Front : Maxxis Dissector Tubeless Ready Exo 3C Maxx Terra 29x2.40 WT
    - Rear : Maxxis Minion DHR II Tubeless Ready Exo 29x2.40 WT
• Crankset : Sram SX Eagle, Boost, DUB axle, Direct mount chain ring,
• Bottom bracket : Sram DUB BSA 73 mm
• Chain : Sram SX Eagle 1x12v
• Rear derailleur : Sram SX Eagle 1x12v
• Shifter : Sram SX Eagle 1x12v
• Cassette : Sram XG-1210 12v 1-50T
• Sold WITHOUT pedals

Size infos

• S : 1.55 a 1.70 m
• M : 1.67 a 1.80 m
• L : 1.75 a 1.88 m
• XL :  1.85 a 1.98m

Mondraker weight : 15.9 kg
