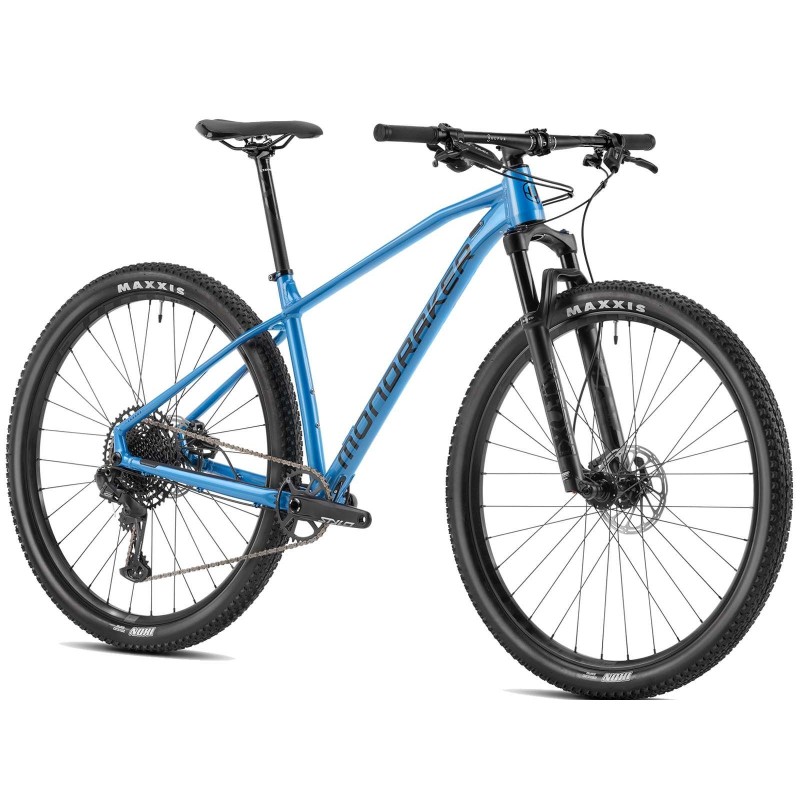

Mondraker Chrono R Blue/Black 29''

With a frame made from butted 6061 Xtralite Alloy, the CHRONO R is a Mondraker through and through. Built to perform at its best, this bike lets you experience XC FORWARD GEOMETRY just like all of our cross country bikes, wherever its place in the range. Climb like a goat thanks to its lightness, and fly back down having fun like nobody’s business. This is how we conceive the mountain bike and this is how we want all our bikes to feel. Logically, we’ve fitted quality components such as Fox’s Float Rhythm fork with 100mm of travel and remote lockout, SRAM’s GX Eagle/SX Eagle 12-speed transmission, SRAM’s Level brakes and ONOFF components.

Frame features

• Material : Stealth Alloy XC Forward Geometry
• Wheel size : 29"
• Headtube type : Tapered
• Bottom bracket type : BSA 73 mm
• Rear axle size : Boost 12x148 mm
• Cable routing : Internal
• Technology :
    - Forward Geometry XC
• Sizes :
    - S
    - M
    - L
    - XL
• Derailleur hanger : M068
• Colour : Blue/Black
• Warranty : Lifetime (Register your bike on Mondraker website)

Components

• Fork : Fox 32 29 Float GRIP EVOL Rhythm, 100mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2pos Push-unlock, low-speed rebound, air preload
• Headset : ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
• Stem : ONOFF Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º,
    - Length size S and M : 60 mm
    - Length size L : 80 mm
    - Length size XL : 90 mm
• Handlebar :  ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore
• Grips : ONOFF Twin, 1lock-on, 135mm
• Seatpost : ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
• Saddle : Mondraker XC Series, steel rail
• Brakes :
    - Front : SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
    - Rear : SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Wheels :
    - Front : MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
    - Rear : MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
• Tires :
    - Front : Maxxis Ikon 29x2.20, 60TPI, wire bead
    - Rear : Maxxis Ikon 29x2.20, 60TPI, wire bead
• Crankset : Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
• Bottom bracket : Sram DUB BSA 73 mm
• Chain : Sram SX Eagle 12 speed
• Rear derailleur : SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
• Shifter : SRAM Trigger SX Eagle, 12s, X-Actuation 1:1
• Cassette : SRAM XG-1210, 11-50T, 12s
• Sold WITHOUT pedals

Mondraker weight : 12.5 kg
