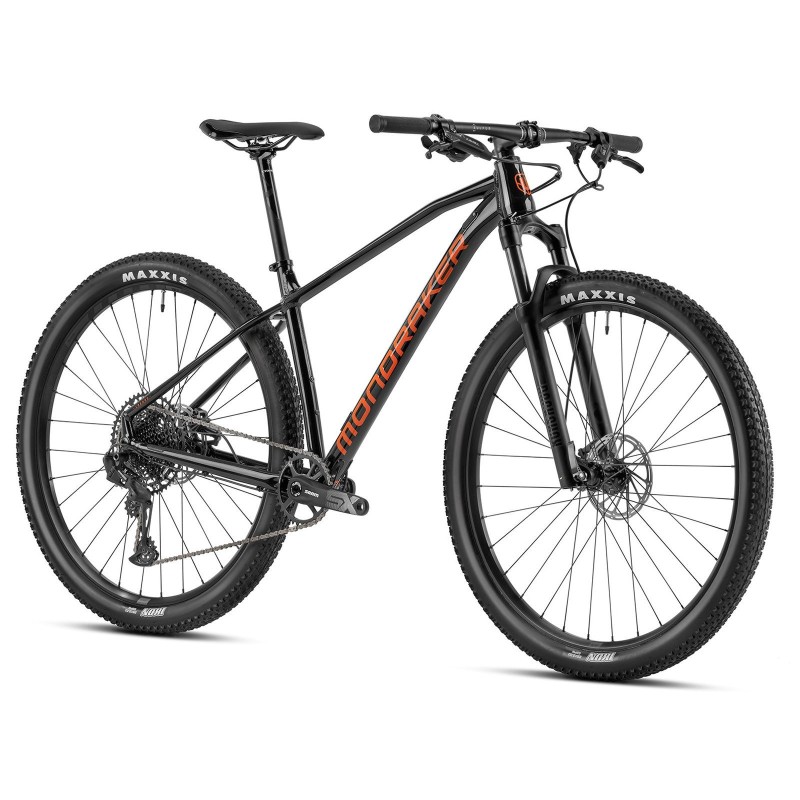

Mondraker Chrono Black/Orange 29''

The Mondraker CHRONO, here in Black/Orange before all else, is a dynamic bike. Its butted 6061 Xtralite aluminium frame has our XC FORWARD GEOMETRY which puts you in an optimal position for pedaling efficiency while offering greater safety and confidence when facing descents. It’s the first bike on price that lets you get to enjoy our more than 20 years of knowledge in the manufacture of top class bikes, because we want you to be able enjoy our purest Racing DNA whatever your budget.

Frame features

• Material : Stealth Alloy XC Forward Geometry
• Wheel size : 29"
• Headtube type : Tapered
• Bottom bracket type : BSA 73 mm
• Rear axle size : Boost 12x148 mm
• Cable routing : Internal
• Technology :
    - Forward Geometry XC
• Sizes :
    - S
    - M
    - L
    - XL
• Derailleur hanger : M068
• Colour : Black/Orange
• Warranty : Lifetime (Register your bike on Mondraker website)

Components

• Fork : RockShox Judy Silver TK 29, 100mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 46mm offset. Settings: Poplock 2 pos remote compression (open/lock), rebound, air preload
• Headset : ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
• Stem : ONOFF Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º,
    - Length size S and M : 60 mm
    - Length size L : 80 mm
    - Length size XL : 90 mm
• Handlebar :  ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore
• Grips : ONOFF Twin, 1lock-on, 135mm
• Seatpost : ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
• Saddle : Mondraker XC Series, steel rail
• Brakes :
    - Front : SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
    - Rear : SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Wheels :
    - Front : MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
    - Rear : MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
• Tires :
    - Front : Maxxis Ikon 29x2.20, 60TPI, wire bead
    - Rear : Maxxis Ikon 29x2.20, 60TPI, wire bead
• Crankset : Sram SX Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
• Bottom bracket : Sram DUB BSA 73 mm
• Chain : Sram SX Eagle 12 speed
• Rear derailleur : SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
• Shifter : SRAM Trigger SX Eagle, 12s, X-Actuation 1:1
• Cassette : SRAM XG-1210, 11-50T, 12s
• Sold WITHOUT pedals

Mondraker weight : 12.9 kg
