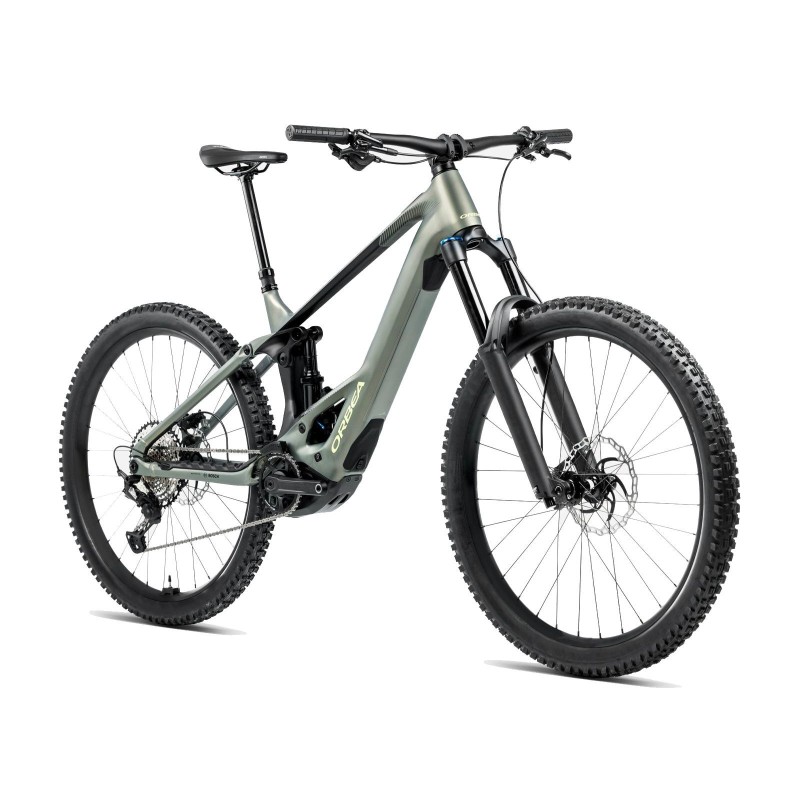

Orbea Wild H10 - Spaceship Green-Black

The Orbea Wild H10 is designed without compromise for demanding use on all types of terrain. Lightweight and perfectly optimized, the Wild is built for performance with an optimized weight distribution, 170 mm of travel, and a gravity-focused geometry. It is equipped with the latest Bosch Performance Line CX motor (GEN5), with a choice between a 750Wh or 600Wh battery (1.3 kg lighter than the 750Wh). Both options are compatible with the optional 250Wh Range Extender.

With its short and vertical seat tube, the Wild allows you to install a high-travel dropper post of your choice. When the terrain gets tough and you need more freedom of movement, long-travel dropper posts are the only solution. Thanks to our Steep'n'Deep concept, most riders can install a 210mm dropper post on their bike. In sizes L and XL, this extends to 240mm.

The Wild is compatible with a Mullet setup. The two linkages allow you to change the rear wheel size without affecting the geometry.

Key Features

• A more efficient frame than ever, with an SBS-type battery integration for increased stiffness
• A clean cockpit design for a sleek look
• Optimized bottom bracket height and crank length for better obstacle clearance
• Integrated, custom-molded motor protection
• Bosch Performance Line CX Gen 5 Smart System motor (85Nm)
• Bosch Powertube battery, 750Wh or 600Wh
• Compatible with the optional 250Wh Range Extender
• 170 mm of travel
• Fox 38 front suspension and Fox Float X shock
• Precise and reliable Shimano 12-speed drivetrain
• Dropper seatpost
• Tubeless Ready wheelset
• Lifetime frame warranty

Specifications

• FRAME: Orbea Wild Hydro, 170mm travel, 29" wheels, Concentric Boost 12x148
• MOTOR: BOSCH Performance Line CX BDU3840 (GEN 5)
• BATTERY: BOSCH Powertube 750Wh Horizontal BBP3770 (600Wh option available from Orbea)
• DISPLAY: BOSCH System Controller BCR3100
• CHARGER: Bosch Charger 4A (230V) BPC3400
• REMOTE: BOSCH Mini Remote BRC3300
• SHOCK: Fox Float X Performance Trunnion 2-Position Evol LV custom tune 205x65mm
• FORK: Fox 38 Performance Grip 3-Position Q15x110 170mm
• CHAINRING: e*thirteen e*spec Direct Mount 34T Boost
• HEADSET: Alloy 1-1/2", Black Oxidated Bearing
• HANDLEBAR: OC Mountain Control MC20 Alu, Rise20, Width 800
• STEM: OC Mountain Control MC20, 0°
• SHIFTERS: Shimano Deore M6100 I-Spec EV
• BRAKES: Shimano M6120 Hydraulic Disc
• CASSETTE: Shimano CS-M7100 10-51t 12-Speed
• REAR DERAILLEUR: Shimano XT M8100 SGS Shadow Plus
• CHAIN: Shimano M6100
• WHEELS: Oquo Mountain Control MC32TEAM POWER
• TIRES: Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra
• SEATPOST: OC Mountain Control MC22, 31.6mm, Dropper
• SEATPOST REMOTE: Shimano SL-MT500 I-Spec EV
• SADDLE: Fizik Aidon 208x145mm manganese rail
• Color: Green and Black

Size Guide (indicative measurements)

• S (29") - 150 to 175 cm
• M (29") - 160 to 185 cm
• L (29") - 170 to 195 cm
• XL (29") - 180 to 205 cm
