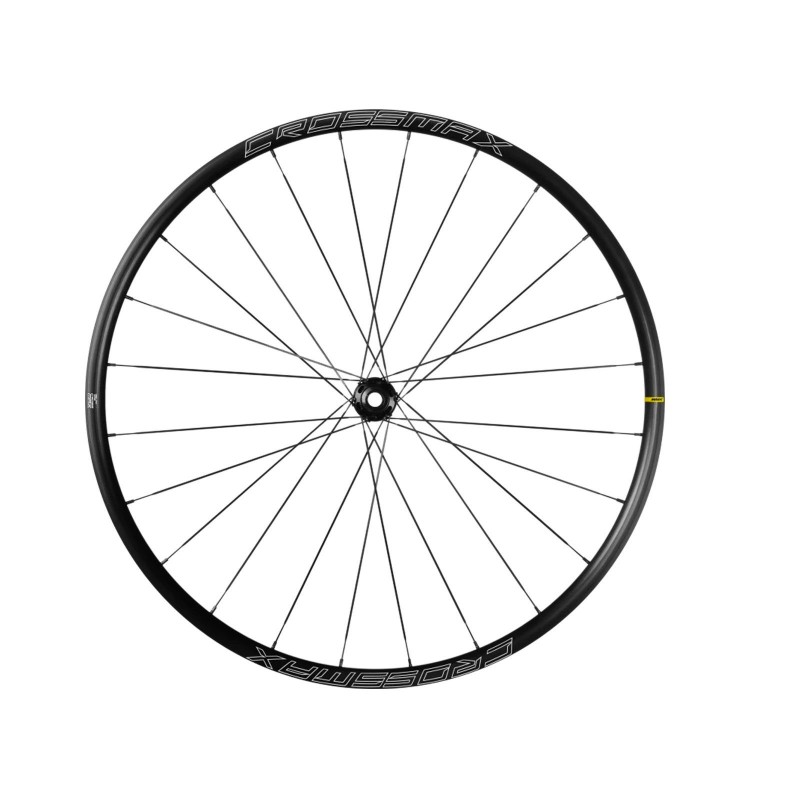

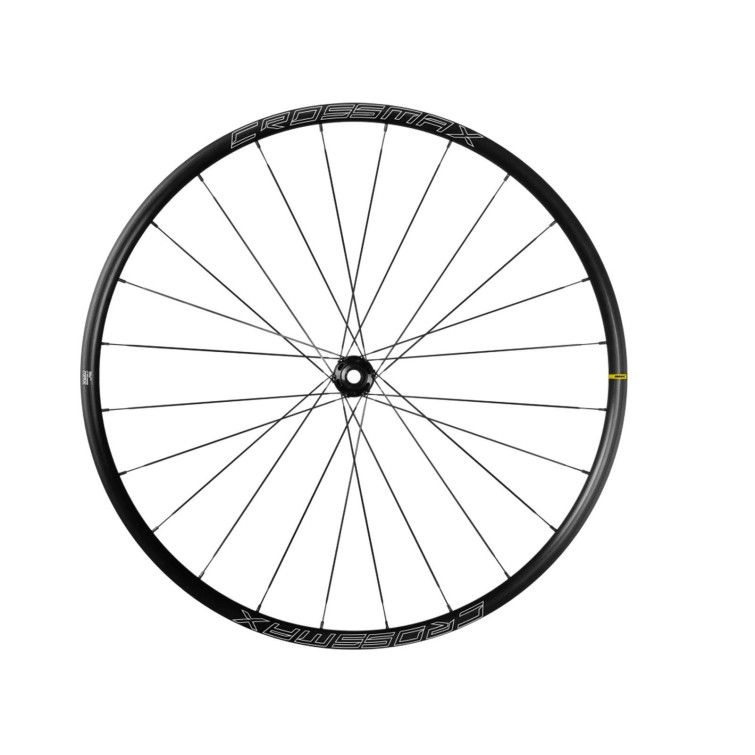

Mavic Crossmax 27,5 Front

The name Crossmax 27,5 has a long history in the world of XC riding and racing. Mavic Crossmax lives up to its name with many of the same features and technologies as pro-level XC race wheels, but at a far more attainable price

One of the key factors is Mavic UST technology, which allows for easy setup of tubeless ready tires and gives you all the associated benefits including better traction and control, a smoother ride quality and a reduced risk of punctures. The rim is welded for added reliability and features a 25mm internal width with a hookless profile

Mavic opted for a total of 24 straight-pull, flat, double butted, steel spokes, laced per 2 with no contact

Crossmax 27,5 is built around the new Infinity hub in 6 bolts disc mount an comes in 15x100 mm spacing and is compatible with 9x100 mm QR thanks to optional adapters

Rim

• Material: Maxtal
• Material: S6000 Aluminum
• Tire: UST Tubeless and tubetype
• Internal width: 25 mm
• ETRTO size 27,5": 584x25TSS
• Asymmetrical hookless rim design
• SUP

Spokes

• Material: steel
• Shape: straight pull, flat, double butted
• Nipples: Steel ABS
• Count: 24
• Lacing: crossed 2, contactless

Hubs

• Hub available with 6-bolt brake rotors
• Axle : Front 15x100 mm compatible with 9x100 mm QR with optional adapters
• QRM Auto

Use :

• ASTM CATEGORY 3 : CROSS COUNTRY
• Recommended tyre sizes: 30mm to 64mm
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 150kg, Bike included

Technologies

• QRM Auto (cartridge bearing with double sealed with C3 internal clearance)
• SUP (Stronger and smoother joint)

Warranty

• 2 years
• Can be extended to 3 years by registring in the Mavic Care Program (max 2 month after the purchase)

Comes with

• UST valve and accessories
• 15x100 mm adapters installed
• Tubeless tape pre installed
• 2 replacement spokes with each wheel

Mavic weight : 775 gr
