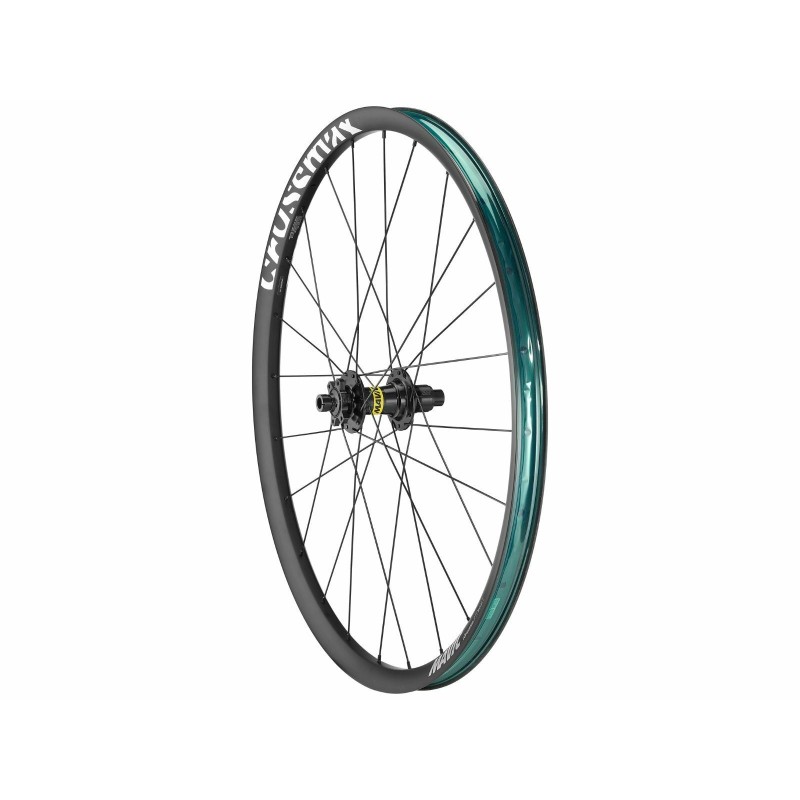

The Mavic Crossmax Carbon S is based on a simple and formidable recipe : accessible carbon precision and responsiveness to transform your XC or light Trail rides
The Mavic Crossmax Carbon S is based on a simple and formidable recipe : accessible carbon precision and responsiveness to transform your XC or light Trail rides. Designed for those looking for more fun and performance, this wheelset offers lightning-fast acceleration and ultra-precise handling in technical sections.
Carbon performance with every pedal stroke
Thanks to their 100% carbon fiber rim, these wheels offer exceptional lateral stiffness while maintaining the necessary compliance to absorb trail vibrations.
30 mm internal width: Perfect for mounting modern wide-section tires (up to 76 mm), allowing you to ride at lower pressure to maximize grip and comfort.
Hookless profile: Strengthens the rim's durability and improves tire support during cornering.
UST Tubeless Ready design: For perfect sealing, increased puncture resistance, and optimal efficiency.
Technological and durable hubs
The heart of the wheel is equipped with the Mavic Classic aluminum hub, renowned for its reliability:
Instant Drive 360: A dual-ratchet freehub system ensuring ultra-fast engagement (9°) for instantaneous accelerations.
QRM Auto bearings: An automatic-adjust sealed cartridge technology that guarantees long-lasting smoothness without any functional play.
Versatility and Robustness
Classified in ASTM category 3, these wheels are ready for demanding Cross-Country. With a total weight limit of 150 kg, they demonstrate a rare robustness for carbon wheels, allowing you to ride with confidence even on rough terrain.
Compatibility:
These wheels are delivered with the freehub body version chosen at the time of purchase, but they are easily convertible to other standards (Shimano HG, Sram XD, Shimano MS) thanks to freehub bodies sold separately.
Rim
Material: 100% carbon fiber with UD outer layer
Drilling: Traditional (front/rear 24 holes)
Hookless rim profile
Tire: UST Tubeless Ready
Internal width: 30 mm
29" ETRTO size: 622x30TSS
Braking: Disc
Spokes
Material: Steel
Shape: J-bend and round
Nipples: Black ABS steel
Count: 24
Lacing: 2-cross
Hub
Body design: Classic
Hub available with 6-bolt or Center Lock (R) disc mount
Axle: 12 x 148 mm Boost
Instant Drive 360 freehub body
Sealed cartridge bearings
QRM Auto (automatic bearing preload adjustment)
Available freehub bodies: - Standard HG (Shimano-Sunrace 9-10-11s / Sram 9-10s, NX 11s and NX Eagle 12s) - XD (Sram 11s and 12s / E13 10s and 11s) - Microspline (Shimano 12-speed)
Usage:
ASTM CATEGORY 3: Cross Country
Recommended tire sizes: 52 to 76 mm
Max weight: 150 kg (including rider and bike weight)
Key Technologies
QRM Auto: high-quality Mavic C3 double-sealed bearings with auto preload adjustment
ID360: new ultra-light and efficient freehub system with an oversized non-contact rubber seal that reduces friction to a minimum
Warranty
2 years
Extendable to a lifetime warranty by registering for the Mavic Care program within two months of purchase
