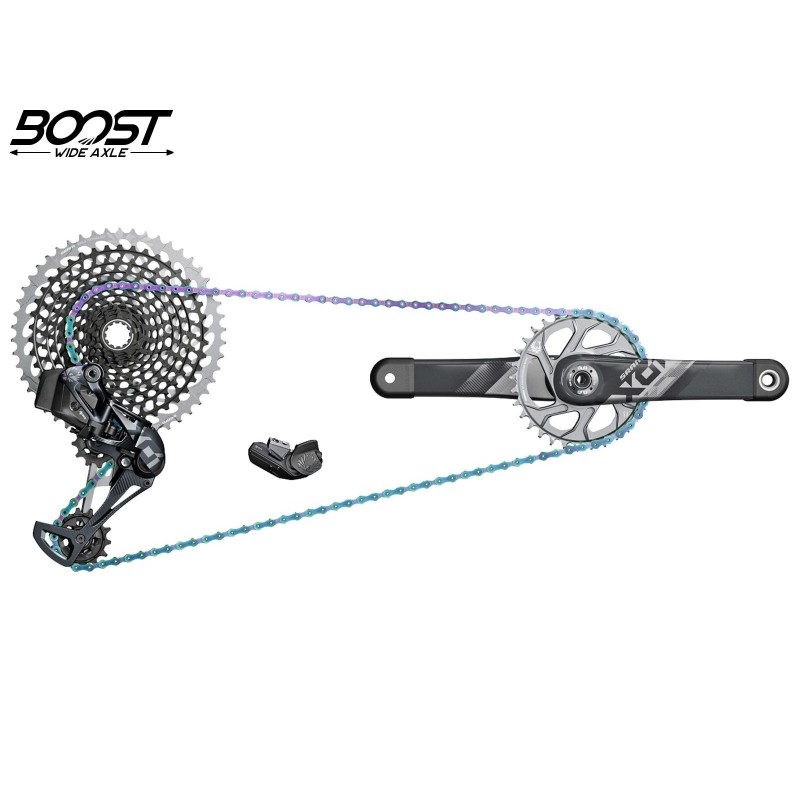

Sram X01 Eagle AXS Groupset 1x12s with DUB Boost Crankset 32T

Sram unveiled is first electronic wireless MTB drivetrain ! Main parts of this X01 Eagle AXS DUB Boost 12 speed groupset are without doubt the shifter and rear derailleur because all other components have just some aesthetic changes. X01 rear derailleur design looks like mechanical one but Sram has changed all its construction to integrate battery and engine. It has also a lower profil with a shorter cage for 10 mm more ground clearance and Sram includes new Overload Clutch technology that allows to disengage on impact and return to position faster than you can say it. The easy to install battery, same on all AXS products (Road, MTB, Reverb), takes place on back and has approximately 15-20h of life. AXS shifter is compact a really easy to use, a simple pressure upward and downward on lever with your thumb is enough to shift. But the real advantage of this X01 AXS drivetrain is the very simple installation, especially for those who have internal cable routing...

Cassette

• 10 to 42 teeth sprockets material : CNC machined CrMo steel
• 50 teeth sprocket material : CNC machined Aluminium
• Speed : 12
• Gearing :
    - 10-50 teeth : 10-12-14-16-18-21-24-28-32-36-42-50
• Technologies :
    - X-Dome : Very lightweight and open construction for better mud clearance
    - X-Glide 2 : Provide fast and precise shifting performance as well as better chain retention on biggest sprocket
• Driver body compatibility : XD
• Drivetrain compatibilities :
    - Sram Eagle 12 speed
    - Sram Eagle AXS 12 speed
• Colour : Black and polar grey

Chain

• External links material : Chrome + PVD
• Internal links material : Chrome + PVD
• Links count : 126
• Pins material : Hard Chrome (hollow)
• Speed : 12
• Technologies :
    - Flow Link : Ultra smooth inner plates for less friction and quieter performance
    - Hard Chrome : 4 times more resistant than all other chains of the brand
    - X-Sync : Especial chain design for great chain retention
• Drivetrain compatibilities :
    - Sram Eagle 12 speed
    - Sram Eagle AXS 12 speed
• Colour : Rainbow
• Sold with 12 speed Sram PowerLock (Non reusable)

Shifter

• Body material : NC
• Lever material : Plastic
• Position : Right
• Matchmaker compatible
• Technologies :
    - AXS : Electronic integration platform
• Drivetrain compatibilities :
    - Sram Red Etap AXS 12 speed
    - Sram Eagle AXS 12 speed
• Also compatible with RockShox Reverb AXS dropper seatpost
• Battery : CR2032
• Battery life : Between 1 and 2 years
• Colour : Black
• Sold with clamp

Rear derailleur

• Body material : Aluminium
• External cage material : Forged aluminium
• Internal cage material : Forged aluminium
• Speed : 12
• Big sprocket max size : 50 teeth
• Upper pulley wheel : 12 teeth
• Lower pulley wheel : X-Sync 14 teeth
• Sealed bearings
• Bolts and screws material : Stainless steel
• Mount bolt in a teflon bushing
• Technologies :
    - AXS : Electronic integration platform
    - Cage Lock : Allows to block cage for easier wheel removal and installation
    - X-Horizon : Straight parallelogram design limits all movement to the horizontal axis
    - Roller Bearing clutch : Eliminate derailleur bounce and chain slap
    - Overload Clutch : Disengage derailleur on impact and return to position
• Drivetrain compatibilities :
    - Sram Red Etap AXS 12 speed
    - Sram Eagle AXS 12 speed
• Engine : AXS
• Battery compatible all other AXS components (XX1 AXS, Etap AXS, Reverb AXS)
• Battery life : Approximately 15-20h
• Water and dust proof to IP69K
• Colour : Black and polar grey

Crankset

• Crank Arms material : Hollow carbon + resin
• Crank Arms lengths:
    - 170 mm
    - 175 mm
• Spindle : DUB
• Frame compatibilities :
    - BSA 68 / 73 mm
    - BB30
    - BB92
    - PF30
• Q-factor : 168 mm
• Chainring : X-Sync 2 Direct Mount Boost
• Chainring size: 32 dents
• Chainring offset : 3 mm
• Chainline : 52 mm
• Technologies :
    - DUB : Spindle diameter (28,99 mm)
    - X-Sync 2 : Especial teeth design for better chain retention
• Drivetrain compatibilities :
    - Sram MTB 11 speed
    - Sram Eagle 12 speed
    - Sram Eagle AXS 12 speed
• Use : All-Mountain / Enduro
• Colour : Black and polar grey
• Sold without bottom bracket

Sram weight : NC
