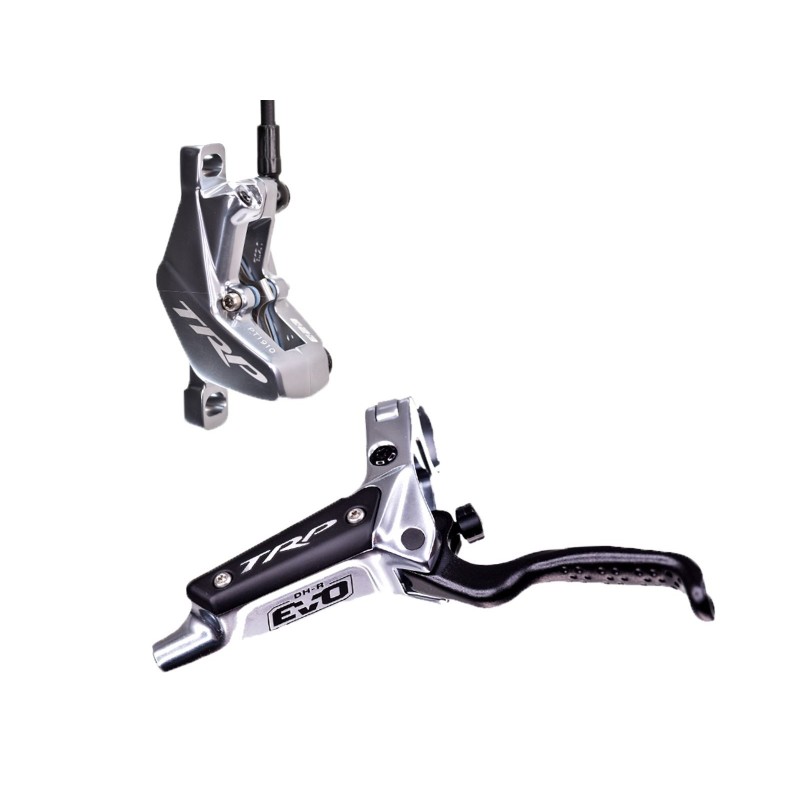

Trp DH-R EVO HD-M846 Front Disc Brake - Silver

The New DH-R EVO (HD-M846) brings maximum power, unparalleled modulation and optimized heat management to heavy 29er DH bikes, long travel enduro rigs and the new era of E-MTB charging. The G-Spec DH-R brake has been re-designed to the all-new DH-R EVO. A new caliper, new lever, new hose, new oil, new pads, new 223/2.3mm rotors and a new hydraulic leverage ratio, creates a new performance standard that fuels the TRP brand. The DH-R EVO (HD-M846) comes in a High Polished Grey to match any high-end bike on the market.

Master cylinder Features

• Ergonomic lever blade
• 9 mm internal brake lever piston
• New hydraulic ratio for more power (1 finger braking and reduced arm pump fatigue)
• I-Spec II compatible
• MMX/TRP Shifter/I-Spec EV compatible (with dedicated adapters sold separately)
• Index reach adjuster
• Performance Mineral Oil (lower viscosity and increased heat resistance and dissipation)
• Colour : Silver

Caliper features

• 4 pistons design
• Hybrid pistons
• Top loading pad design
• Banjo design
• New Hose : 5 mm diameter with improved thermal stability
• Hose Length : 190 cm
• New Organic pads with improved heat resistance
• E-Bile rated (greater stability, improved flor rate and improved rear brake response, faster venting)
• Only compatible with 2.3 mm rotor thickness
• Colour : Silver

PureBike propose a hose shortening service by following this link

Kit includes

• 1 TRP DH-R EVO (HD-M846) discbrake front left hand ready for use
• 1 Shortening Kit
• 1  Organic Brake pads (installed)
• Caliper Bolts

Brake mount and rotors sold separately

Weight : 310 gr (without rotor and adapter)
