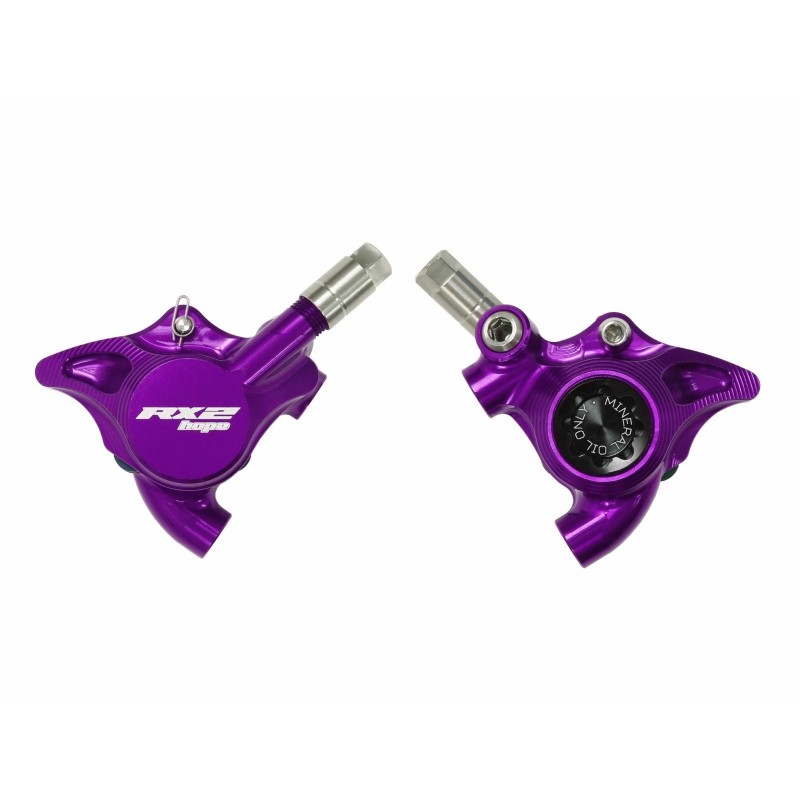

Hope RX2 Caliper Flat Mount - Mineral Version - Purple

The Hope RX2 brake caliper is machined from a 2014 T6 aluminum block offering high rigidity and a sharp braking feel. Equipped with two 22 mm diameter phenolic resin pistons, these are developed to work with disc brakes using Mineral oil (Shimano). The RX2 caliper is available in several anodized colors (Blue, Orange, Red, Black, Purple, Silver, Smoke) and comes with two types of pads (Blue for road use, and Red for Cyclo Cross / Gravel use).

This version of the RX2 features the Flat Mount format (34 mm spacing) and allows for 140, 160, or 180 mm disc mounting depending on the installed adapter and mounting type.

Features

• CNC machined 2014 T6 aluminum monobloc caliper
• 2-piston caliper (22 mm)
• 34 mm Flat Mount fixation
• Compatible disc diameters: 140 mm, 160 mm, or 180 mm depending on the adapter and frame/fork mount
• Compatible braking system: Mineral only
• Bleed syringe kit available separately
• Colors available : Black, Blue, Red, Orange, Silver, Purple, Smoke

Compatibility

• Dura Ace Di2 R9270 / R9170 / R9120 / R9200
• Ultegra Di2 R8170 / R8100 / R8070 / R8170 / R8020 /
• 105 Di2 R7170 / R7020 / Di2 R785 / RS685 /
• GRX RX820 / RX810 / RX600 / RX400 / RX815 Di2 / RX817 Di2

What's included

• RX2 brake caliper
• Blue pads for Road use
• Red pads for Cyclo Cross / Gravel use
• Hose connector kit
• Fixing screws

Documentation

Guide to determining which adapter you need
