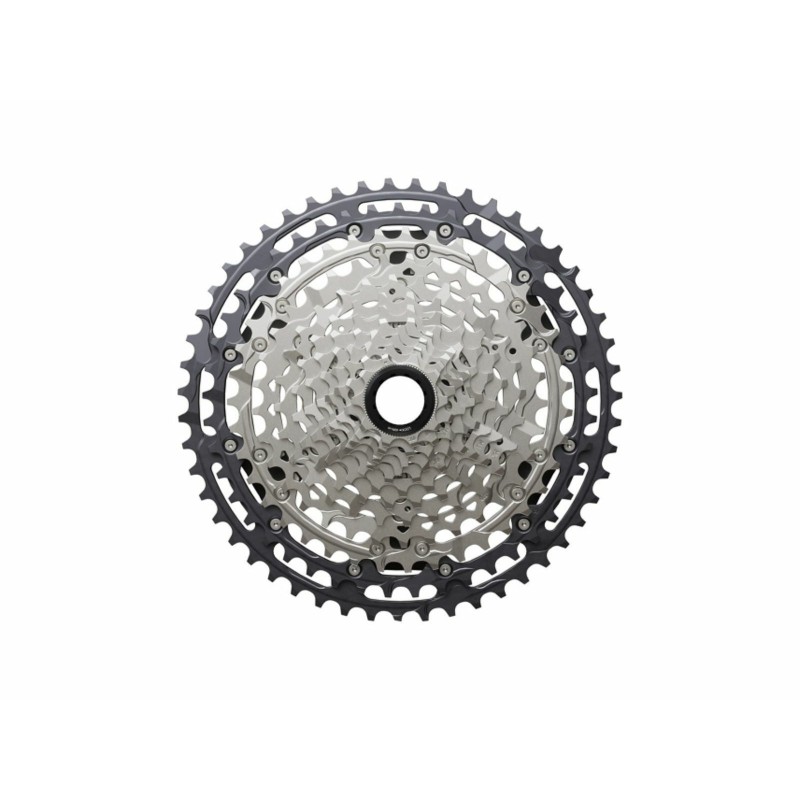

Shimano XT M8200 12-speed Cassette

The Shimano Deore XT CS-M8200 12-speed cassette marks the next evolution in MTB drivetrains from the Japanese manufacturer. It features an optimized version of HYPERGLIDE+ technology, boasting redesigned tooth profiles engineered to deliver even smoother, quieter, and ultra-fast gear changes, even under the heaviest pedalling loads.

Still designed for the Micro Spline freehub body standard, the XT M8200 cassette utilizes a strategic hybrid construction combining steel for high-wear sprockets and aluminium for the largest sprockets, ensuring an exceptional weight-to-durability ratio.

It is available in two complementary configurations:

• 10-51T Version (510% Range): The most versatile cassette offering the widest gear range to conquer the steepest climbs with maximum compatibility.
• 9-45T Version (500% Range): An ultra-compact and lightweight option, ideal when paired with a medium-cage rear derailleur and smaller chainrings, delivering optimal efficiency without sacrificing versatility.

Specifications

• Model: Shimano Deore XT CS-M8200
• Speeds: 12-speed
• Materials:
    - High-quality steel sprockets
    - Aluminium alloy largest sprockets
• Available gear ratios:
    - 9-45 teeth (500%): 9-11-13-15-17-19-21-24-28-33-39-45T
    - 10-51 teeth (510%): 10-12-14-16-18-21-24-28-33-39-45-51T
• Technologies:
    - HYPERGLIDE+ (New generation): Redesigned tooth profiles for instant shifting under heavy load.
    - MICRO SPLINE: Splined interface engagement allowing the integration of 9 and 10-tooth sprockets.
• Freehub body compatibility: Micro Spline (Installation of the 9-45T version requires the Shimano TL-LR021 tool)
• Drivetrain compatibility: Shimano 12-speed MTB
• Colour: Black and silver grey

Shimano Weight

• 9-45T (teeth): 427g
• 10-51T (teeth): 462g
