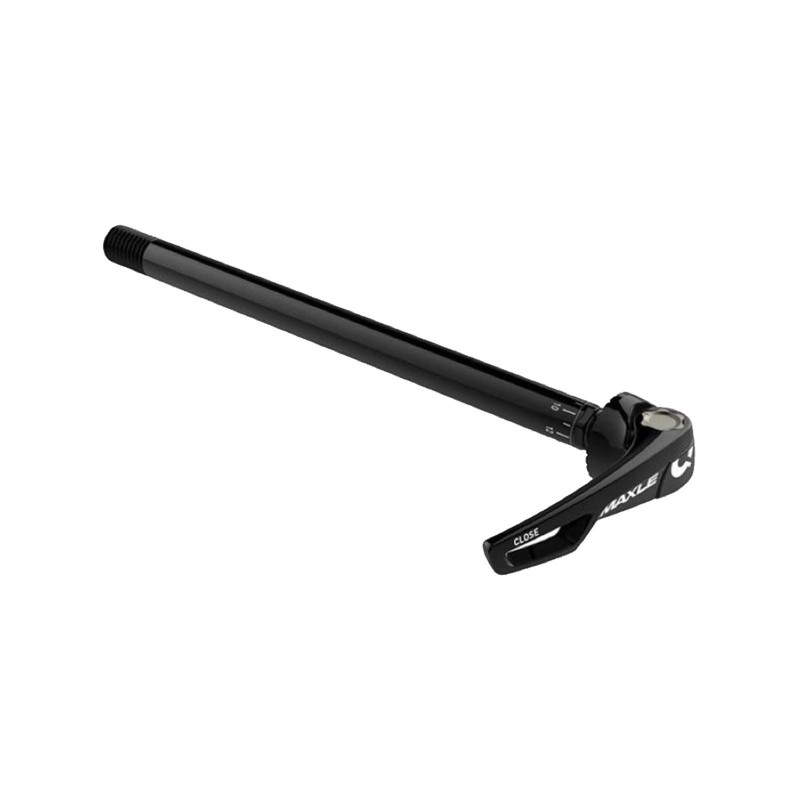

Rock Shox Maxle Ultimate MTB rear axle 12 mm

Rock Shox Maxle Ultimate clamping strength pushes the frame sides together instead of using an expanding wedge against the inner diameter of the right frame side.

Features

• Material : Aluminium
• Integrated quick release
• Use : MTB

Version 12X135 mm - 167 mm

• Wheel axle size : 12X135 mm
• Total length : 167 mm
• Thread pitch : M12X1.75
• Thread length : 20 mm
• Compatibility : Frame with Maxle system

Version 12X142 mm - 174 mm

• Wheel axle size : 12X142 mm
• Total length : 174 mm
• Thread pitch : M12X1.75
• Thread length : 20 mm
• Compatibility : Frame with Maxle system

Version 12X142 mm - 195 mm

• Wheel axle size : 12X142 mm
• Total length : 195 mm
• Thread pitch : M12X1.75
• Thread length : 20 mm
• Compatibility : Frame with Maxle system

Version 12X148 mm - 180 mm

• Wheel axle size : 12X148 mm
• Total length : 180 mm
• Thread pitch : M12X1.75
• Thread length : 20 mm
• Compatibility : Frame with Boost Maxle system

Version 12X150 mm - 182 mm

• Wheel axle size : 12X150 mm
• Total length : 182 mm
• Thread pitch : M12X1.75
• Thread length : 20 mm
• Compatibility : Frame with Maxle system

Version 12X177 mm - 217 mm

• Wheel axle size : 12X177 mm
• Total length : 217 mm
• Thread pitch : M12X1.75
• Thread length : 20 mm
• Compatibility : Fat Bike Frame with Maxle system

Version 12X197 mm - 229 mm

• Wheel axle size : 12X197 mm
• Total length : 229 mm
• Thread pitch : M12X1.50
• Thread length : 20 mm
• Compatibility : Fat Bike Frame with Maxle system

Checked weight

• 12X148 mm : 79 gr
• 12X177 mm : 86 gr
• 12X197 mm : 90 gr
